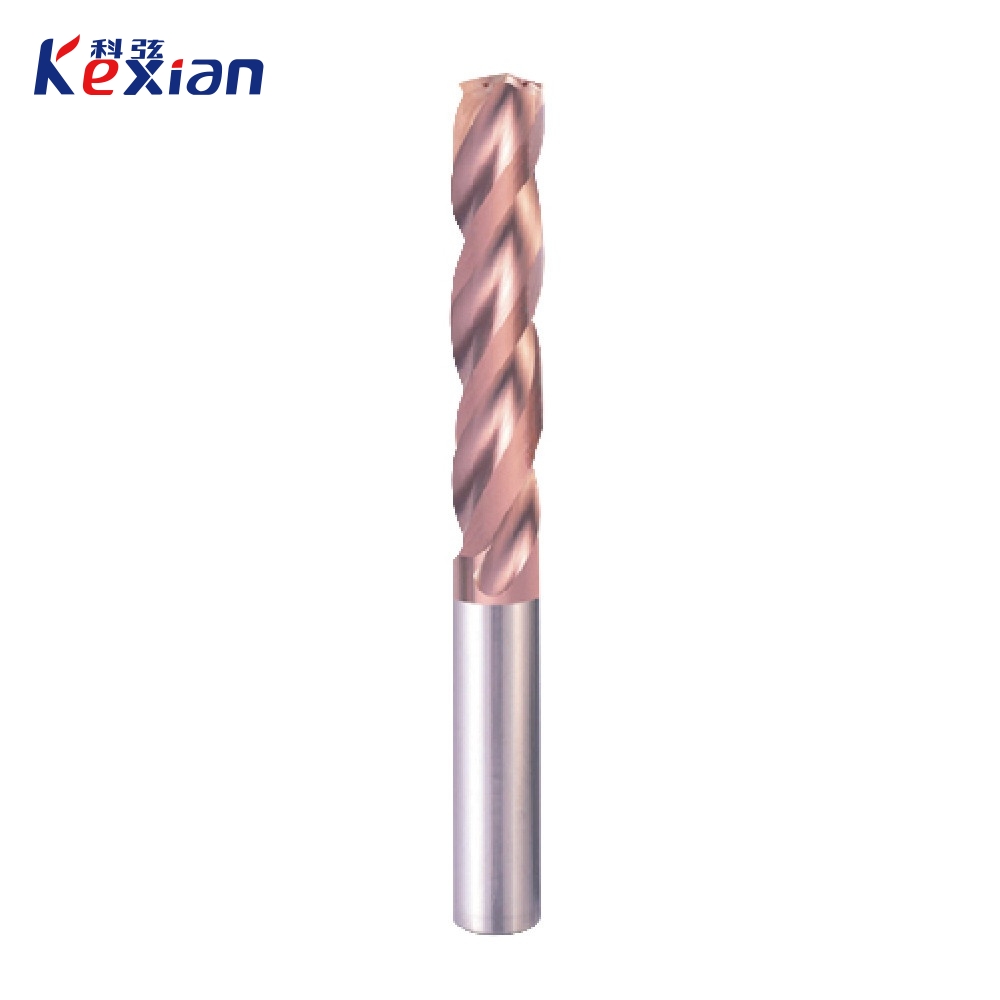

三刃钻 3DSRW
| 刃径Dc | 公差.m7 |
| 3.00≤刃径Dc≤6.00 | +0.016/+0.004 |
| 6.01≤刃径Dc≤10.00 | +0.021/+0.006 |
| 10.01≤刃径Dc≤18.00 | +0.025/+0.007 |
| 18.01≤刃径Dc≤20.00 | +0.029/+0.008 |
刀具尺寸
切割材料
非常适合
适合
碳素钢 | 合金钢 | 调制钢 | 铸铁 | 淬硬钢 | 不锈钢 | 钛合金 | 铝合金 | 铜 | 树脂 | 石墨 | 高温合金 | |
| ≤52hrc | >52hrc | |||||||||||
| | | | | | | | |||||
| 订货号 | 刃径Dc (mm) | 槽长L3 (mm) | 总长L (mm) | 柄径Ds (mm) | 柄长Ls (mm) | 最大削钻深度L4 (mm) | ||||||
| 3DSRW.400.24.04.66 | 4.00 | 24.00 | 66.00 | 4.00 | 36.00 | 17.00 | ||||||
| 3DSRW.420.24.06.66 | 4.20 | 24.00 | 66.00 | 6.00 | 36.00 | 17.00 | ||||||
| 3DSRW.450.24.06.66 | 4.50 | 24.00 | 66.00 | 6.00 | 36.00 | 18.00 | ||||||
| 3DSRW.500.28.06.66 | 5.00 | 28.00 | 66.00 | 6.00 | 36.00 | 20.00 | ||||||
| 3DSRW.550.28.06.66 | 5.50 | 28.00 | 66.00 | 6.00 | 36.00 | 21.00 | ||||||
| 3DSRW.600.28.06.66 | 6.00 | 28.00 | 66.00 | 6.00 | 36.00 | 21.00 | ||||||
| 3DSRW.610.28.06.66 | 6.10 | 28.00 | 66.00 | 6.00 | 36.00 | 21.00 | ||||||
| 3DSRW.620.34.08.79 | 6.20 | 34.00 | 79.00 | 8.00 | 36.00 | 23.00 | ||||||
| 3DSRW.635.34.08.79 | 6.35 | 34.00 | 79.00 | 8.00 | 36.00 | 23.00 | ||||||
| 3DSRW.650.34.08.79 | 6.50 | 34.00 | 79.00 | 8.00 | 36.00 | 23.00 | ||||||
| 3DSRW.680.34.08.79 | 6.80 | 34.00 | 79.00 | 8.00 | 36.00 | 25.00 | ||||||
| 3DSRW.700.34.08.79 | 7.00 | 34.00 | 79.00 | 8.00 | 36.00 | 25.00 | ||||||
| 3DSRW.750.41.08.79 | 7.50 | 41.00 | 79.00 | 8.00 | 36.00 | 25.00 | ||||||
| 3DSRW.780.41.08.79 | 7.80 | 41.00 | 79.00 | 8.00 | 36.00 | 27.00 | ||||||
| 3DSRW.800.41.08.79 | 8.00 | 41.00 | 79.00 | 8.00 | 36.00 | 27.00 | ||||||
| 3DSRW.850.47.10.89 | 8.50 | 47.00 | 89.00 | 10.00 | 40.00 | 27.00 | ||||||
| 3DSRW.900.47.10.89 | 9.00 | 47.00 | 89.00 | 10.00 | 40.00 | 29.00 | ||||||
| 3DSRW.950.47.10.89 | 9.50 | 47.00 | 89.00 | 10.00 | 40.00 | 29.00 | ||||||
| 3DSRW.1000.47.10.89 | 10.00 | 47.00 | 89.00 | 10.00 | 40.00 | 31.00 | ||||||
| 3DSRW.1050.55.12.102 | 10.50 | 55.00 | 102.00 | 12.00 | 45.00 | 31.00 | ||||||
| 3DSRW.1100.55.12.102 | 11.00 | 55.00 | 102.00 | 12.00 | 45.00 | 33.00 | ||||||
| 3DSRW.1150.55.12.102 | 11.50 | 55.00 | 102.00 | 12.00 | 45.00 | 33.00 | ||||||
| 3DSRW.1200.55.12.102 | 12.00 | 55.00 | 102.00 | 12.00 | 45.00 | 36.00 | ||||||
| 3DSRW.1250.60.14.107 | 12.50 | 60.00 | 107.00 | 14.00 | 45.00 | 36.00 | ||||||
| 3DSRW.1270.60.14.107 | 12.70 | 60.00 | 107.00 | 14.00 | 45.00 | 36.00 | ||||||
| 3DSRW.1300.60.14.107 | 13.00 | 60.00 | 107.00 | 14.00 | 45.00 | 36.00 | ||||||
| 3DSRW.1350.60.14.107 | 13.50 | 60.00 | 107.00 | 14.00 | 45.00 | 37.00 | ||||||
| 3DSRW.1400.60.14.107 | 14.00 | 60.00 | 107.00 | 14.00 | 45.00 | 37.00 | ||||||
| 3DSRW.1450.65.16.115 | 14.50 | 65.00 | 115.00 | 16.00 | 48.00 | 38.00 | ||||||
| 3DSRW.1500.65.16.115 | 15.00 | 65.00 | 115.00 | 16.00 | 48.00 | 38.00 | ||||||
| 3DSRW.1550.65.16.115 | 15.50 | 65.00 | 115.00 | 16.00 | 48.00 | 39.00 | ||||||
| 3DSRW.1600.65.16.115 | 16.00 | 65.00 | 115.00 | 16.00 | 48.00 | 39.00 | ||||||
| 3DSRW.1650.73.18.123 | 16.50 | 73.00 | 123.00 | 18.00 | 48.00 | 40.00 | ||||||
| 3DSRW.1700.73.18.123 | 17.00 | 73.00 | 123.00 | 18.00 | 48.00 | 40.00 | ||||||
| 3DSRW.1750.73.18.123 | 17.50 | 73.00 | 123.00 | 18.00 | 48.00 | 41.00 | ||||||
| 3DSRW.1800.73.18.123 | 18.00 | 73.00 | 123.00 | 18.00 | 48.00 | 41.00 | ||||||
| 3DSRW.2000.79.20.131 | 20.00 | 79.00 | 131.00 | 20.00 | 50.00 | 49.00 | ||||||
