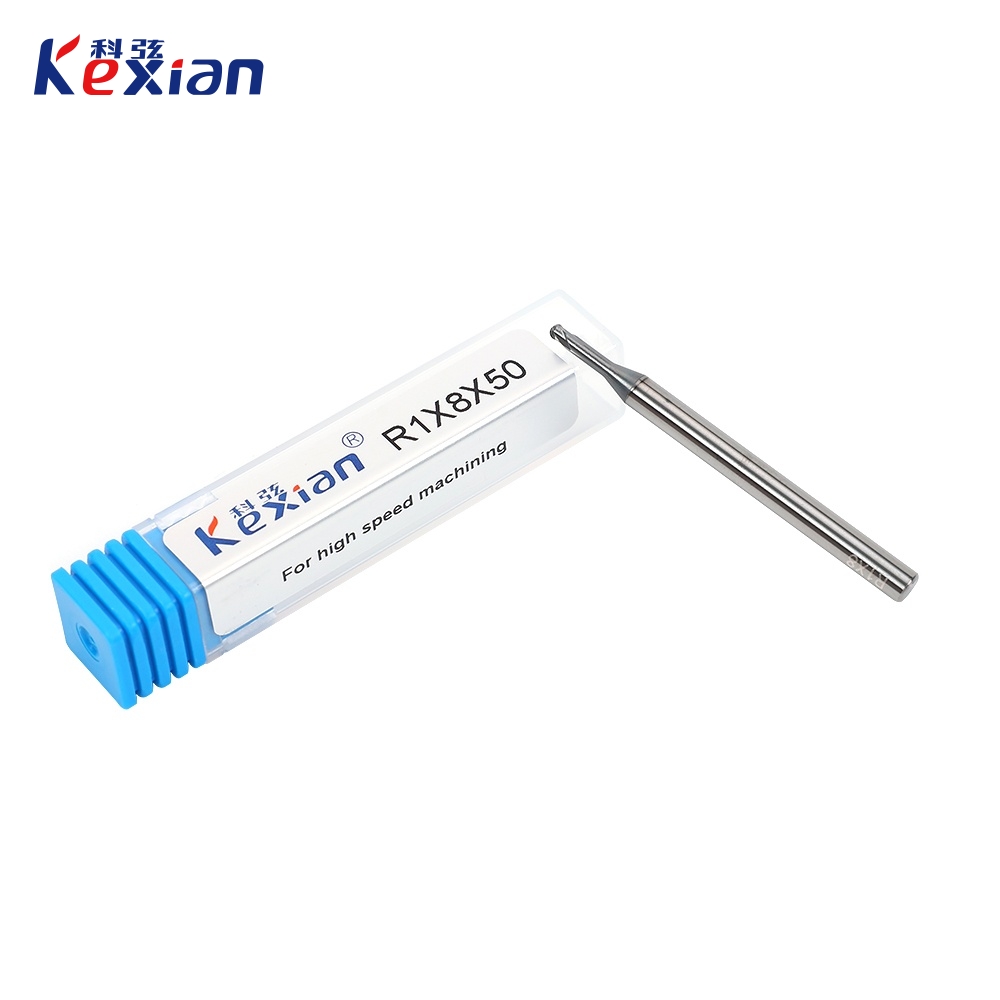

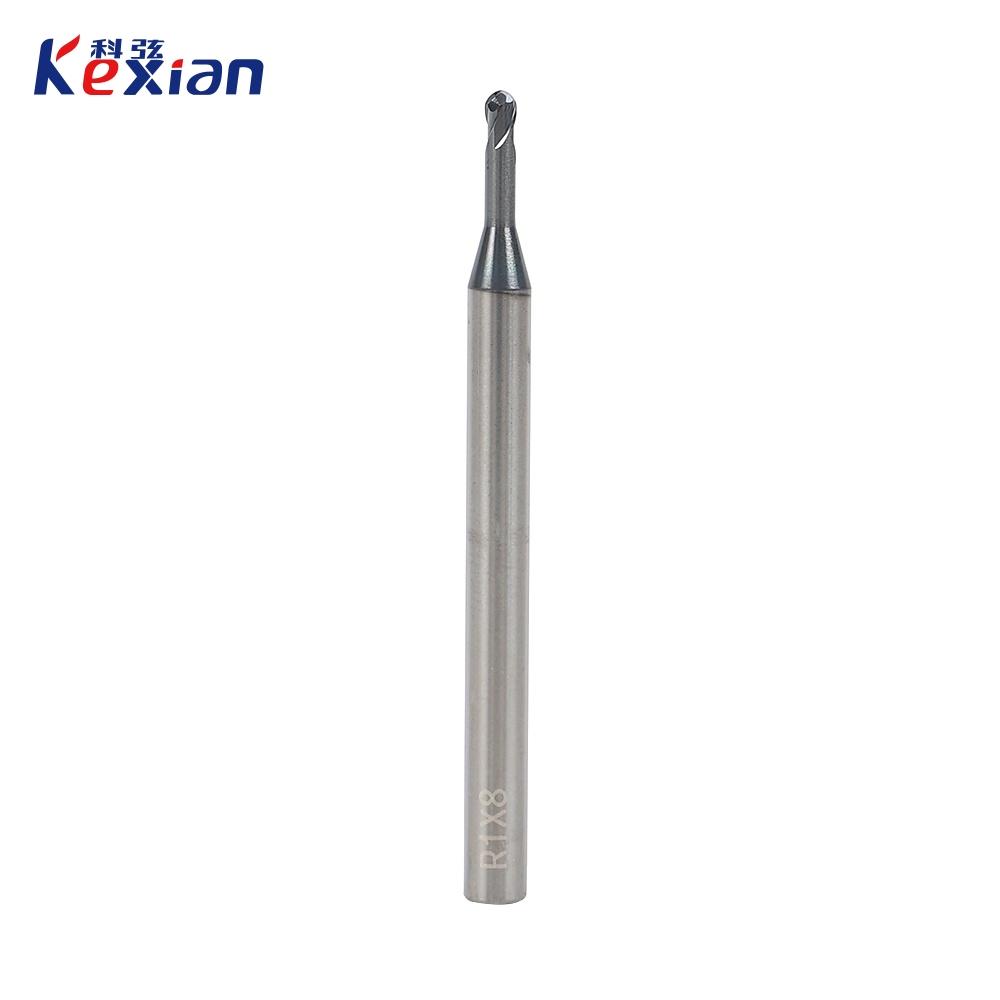

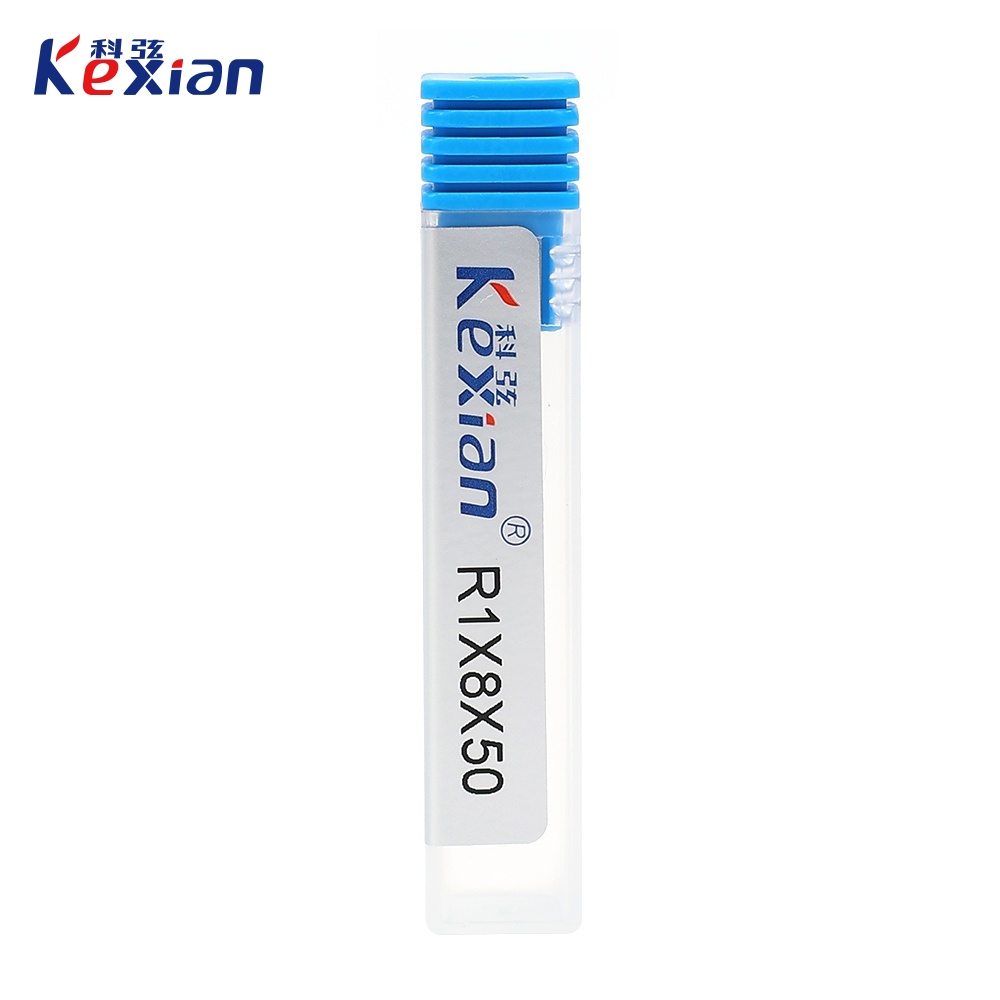

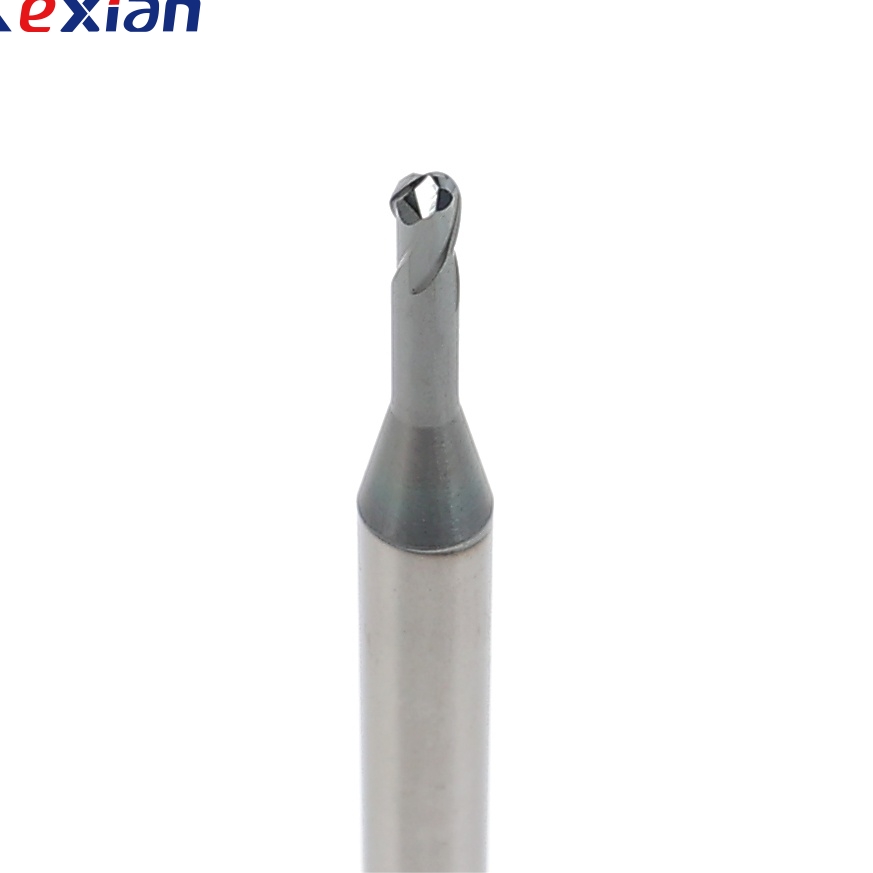

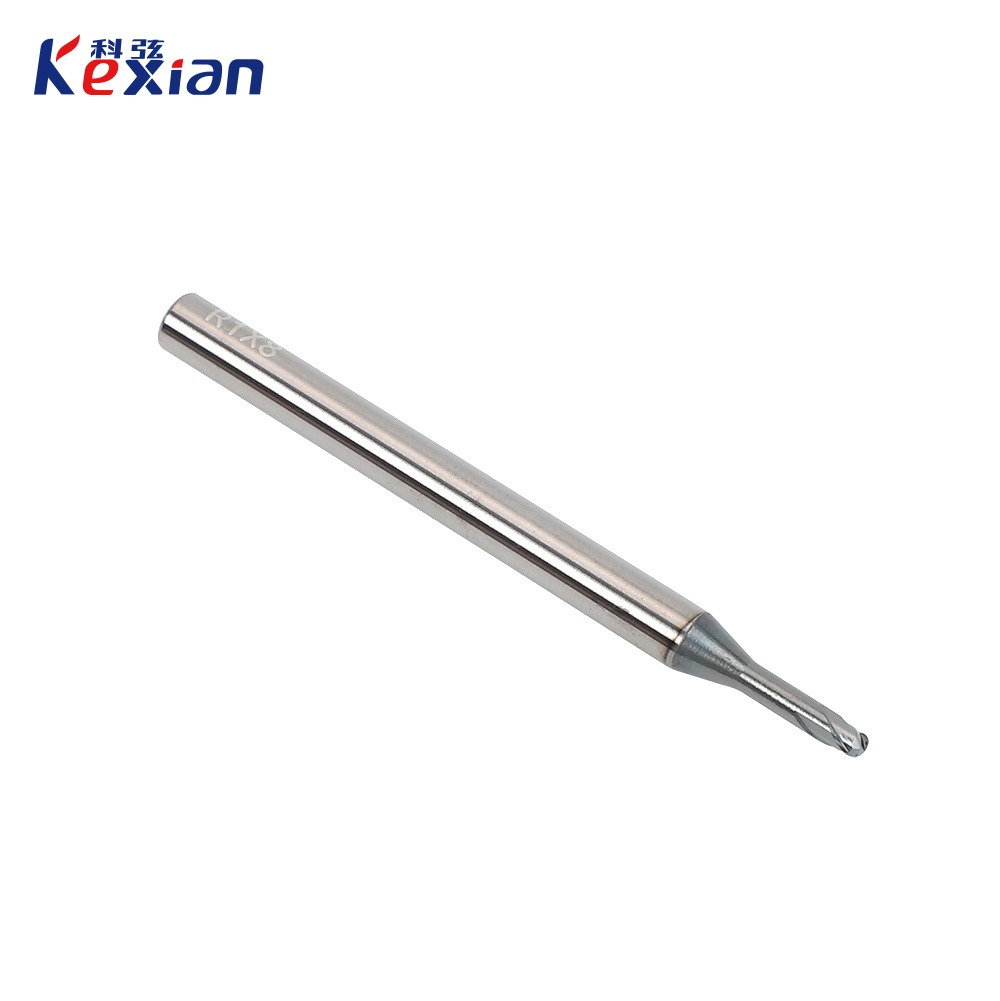

52.20.080.2LB

2刃深沟球刀

公差	d=h5
D≤3	0，-0.015
3<D<20	0，-0.02
R<1	±0.005
R≥1	±0.01

刀具尺寸

涂层种类	仿形铣	刃数	螺旋角	适合材料硬度
CrAL		2	30°	HRC≤52

切割材料
非常合适
合适

碳素钢

合金钢

调制钢

铸铁

淬硬钢

不锈钢

钛合金

铝合金

铜

树脂

石墨

高温合金

≤52hrc

>52hrc

订货号	球头半径 (mm)	避空长 (mm)	刃长 (mm)	避空径 (mm)	柄径 (mm)	全长（L）
52.03.008.2LB	R0.15	0.8	0.24	0.28	4	45
52.03.010.2LB		1				45
52.03.012.2LB		1.2				45
52.03.015.2LB		1.5				45
52.03.020.2LB		2				45
52.03.025.2LB		2.5				45
52.03.030.2LB		3				45
52.04.010.2LB	R0.2	1	0.32	0.37	4	45
52.04.015.2LB		1.5				45
52.04.020.2LB		2				45
52.04.025.2LB		2.5				45
52.04.030.2LB		3				45
52.04.040.2LB		4				45
52.04.050.2LB		5				45
52.04.060.2LB		6				45
52.05.015.2LB	R0.25	1.5	0.4	0.46	4	45
52.05.020.2LB		2				45
52.05.030.2LB		3				45
52.05.040.2LB		4				45
52.05.060.2LB		6				45
52.05.080.2LB		8				50
52.05.100.2LB		10				50
52.06.015.2LB	R0.3	1.5	0.48	0.56	4	45
52.06.020.2LB		2				45
52.06.040.2LB		4				45
52.06.060.2LB		6				45
52.06.080.2LB		8				50
52.06.100.2LB		10				50
52.08.020.2LB	R0.4	2	0.64	0.76	4	50
52.08.030.2LB		3				50
52.08.040.2LB		4				50
52.08.060.2LB		6				50
52.08.080.2LB		8				50
52.08.100.2LB		10				50
52.08.120.2LB		12				50
52.10.040.2LB	R0.5	4	0.8	0.95	4	50
52.10.060.2LB		6				50
52.10.080.2LB		8				50
52.10.100.2LB		10				50
52.10.120.2LB		12				50
52.10.150.2LB		15				50
52.15.060.2LB	R0.75	6	1.2	1.45	4	50
52.15.080.2LB		8				50
52.15.100.2LB		10				50
52.15.120.2LB		12				50
52.15.150.2LB		15				50
52.15.200.2LB		20				60
52.15.250.2LB		25				75
52.15.300.2LB		30				75
52.20.080.2LB	R1	8	1.6	1.94	4	50
52.20.100.2LB		10				50
52.20.120.2LB		12				50
52.20.160.2LB		16				50
52.20.200.2LB		20				60
52.20.250.2LB		25				75
52.20.300.2LB		30				75
52.20.350.2LB		35				75
52.20.400.2LB		40				75
52.25.080.2LB	R1.25	8	2	2.4	6	50
52.25.100.2LB		10				50
52.25.150.2LB		15				50
52.25.200.2LB		20				60
52.25.250.2LB		25				75
52.25.300.2LB		30				75
52.25.350.2LB		35				75
52.25.400.2LB		40				75
52.25.450.2LB		45				100
52.30.100.2LB	R1.5	10	2.4	3.85	6	50
52.30.150.2LB		15				50
52.30.200.2LB		20				60
52.30.250.2LB		25				75
52.30.300.2LB		30				75
52.30.350.2LB		35				75
52.30.400.2LB		40				75
52.30.450.2LB		45				100
52.40.160.2LB	R2	16	3.2	2.8	6	60
52.40.200.2LB		20				60
52.40.250.2LB		25				75
52.40.300.2LB		30				75
52.40.400.2LB		40				75
52.40.500.2LB		50				100
52.40.600.2LB		60				100
52.50.160.2LB	R2.5	16	4	4.8	6	60
52.50.200.2LB		20				60
52.50.250.2LB		25				75
52.50.300.2LB		30				75
52.50.400.2LB		40				75
52.50.500.2LB		50				100
52.50.600.2LB		60				100
