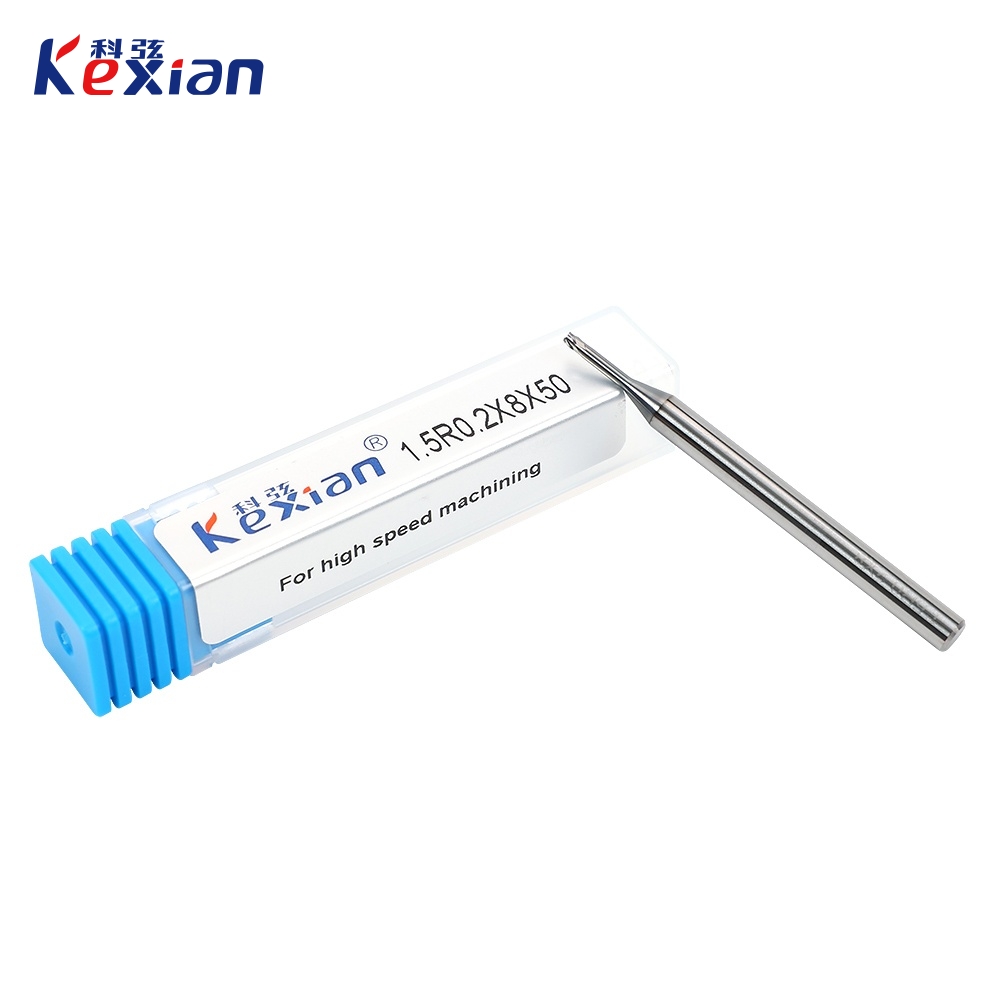

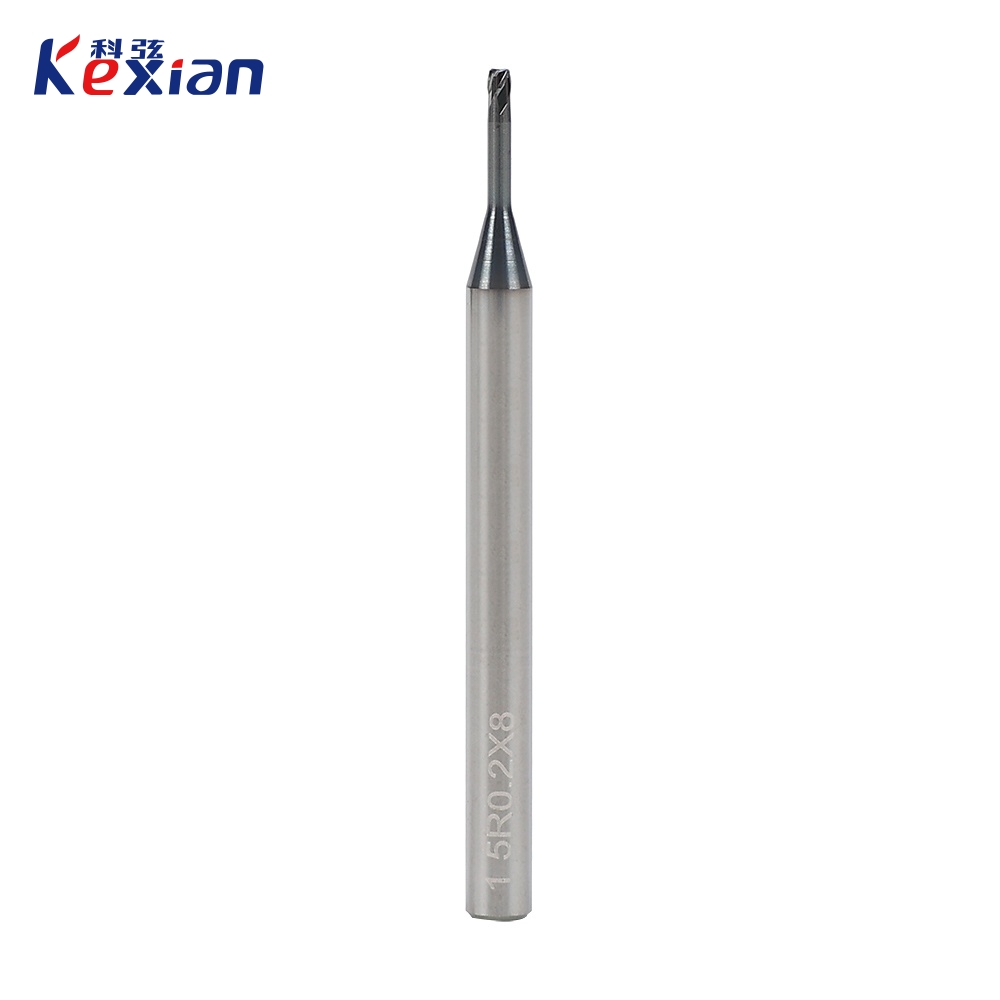

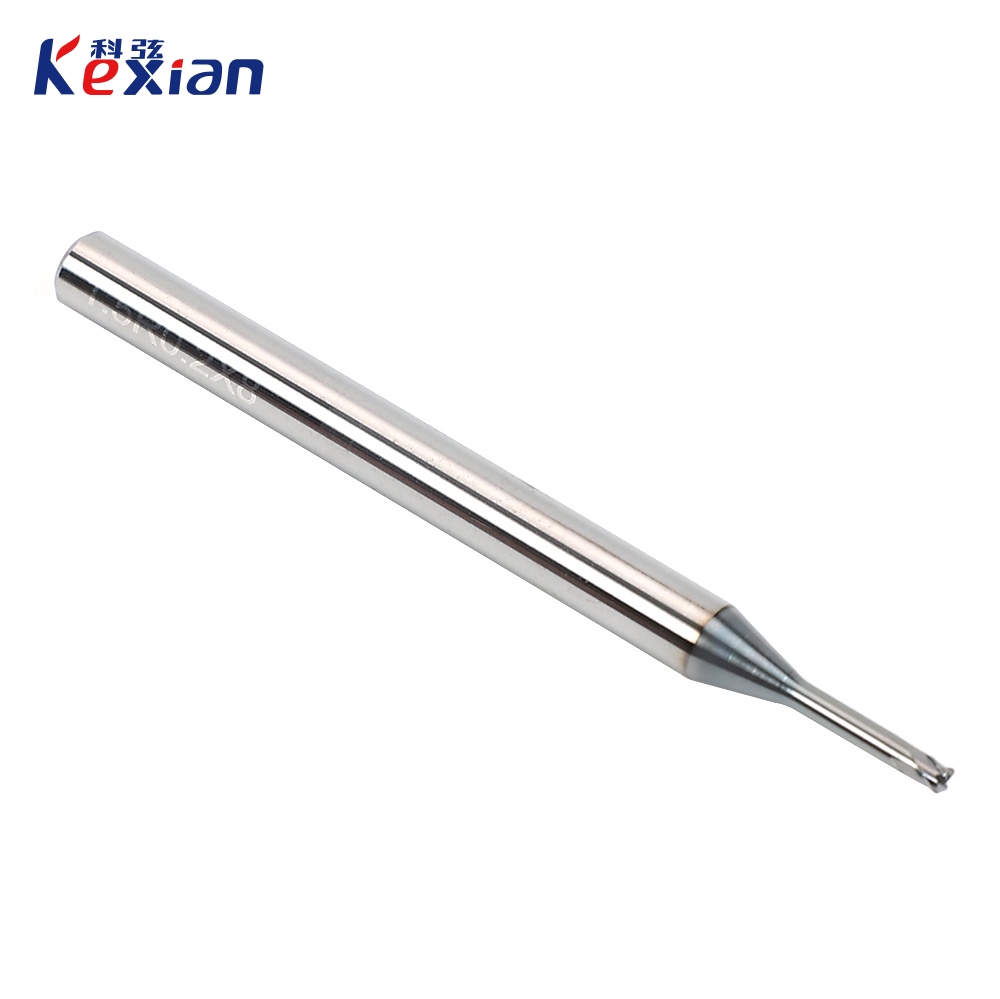

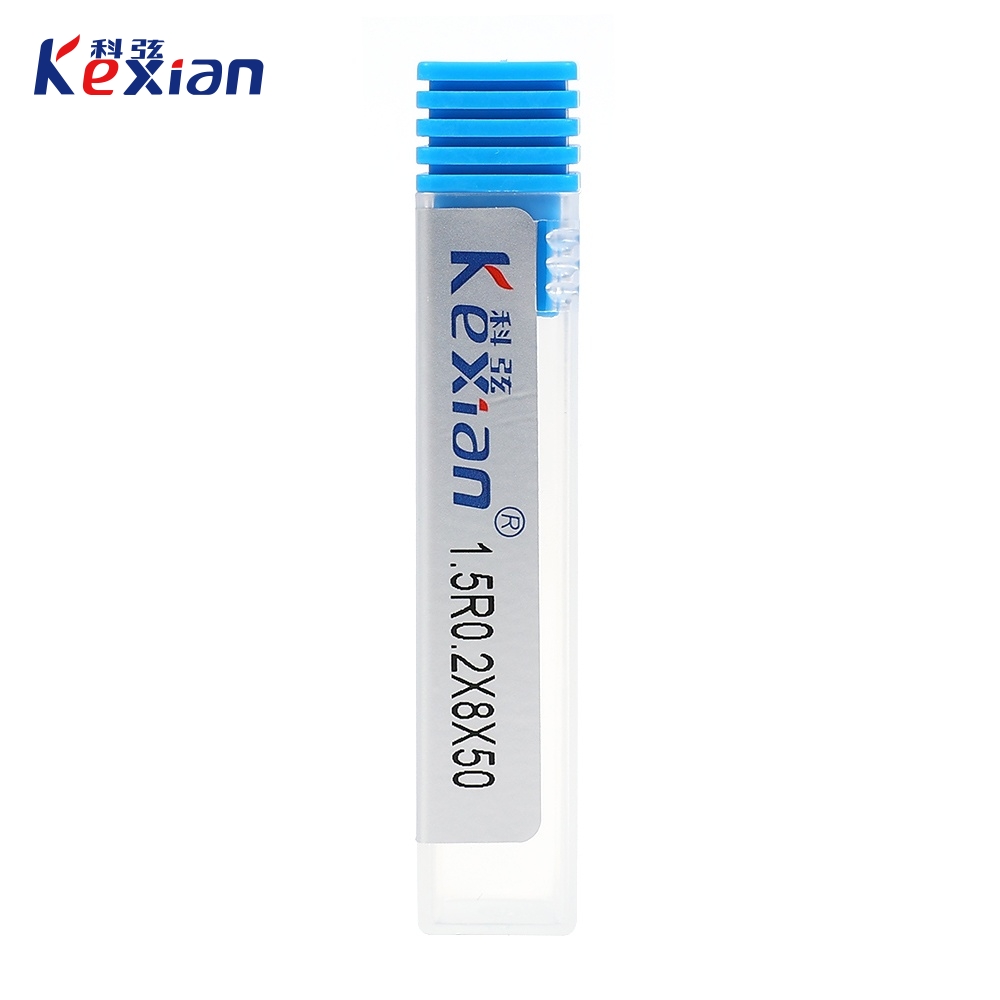

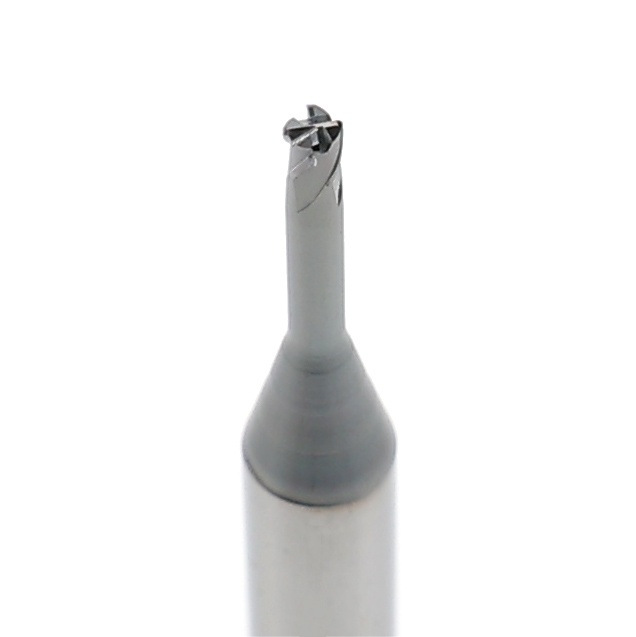

52.15.080.020.4LR

4刃深沟圆鼻刀

公差	d=h5
D≤3	0，-0.015
3<D<20	0，-0.02
R	±0.005

刀具尺寸

涂层种类	开槽	侧铣	面铣	刃数	螺旋角	适合材料硬度
CrAL				4	30°	HRC≤52

切割材料
非常合适
合适

碳素钢

合金钢

调制钢

铸铁

淬硬钢

不锈钢

钛合金

铝合金

铜

树脂

石墨

高温合金

≤52hrc

>52hrc

订货号	刃径 (mm)	圆鼻R角 (mm)	避空长 (mm)	刃长 (mm)	避空径 (mm)	柄径 (mm)	全长 (mm)
52.10.040.005.4LR	1	R0.05	4	1	0.95	4	50
52.10.060.005.4LR			6				50
52.10.080.005.4LR			8				50
52.10.100.005.4LR			10				50
52.10.120.005.4LR			12				50
52.10.150.005.4LR			15				50
52.10.040.010.4LR		R0.1	4				50
52.10.060.010.4LR			6				50
52.10.080.010.4LR			8				50
52.10.100.010.4LR			10				50
52.10.120.010.4LR			12				50
52.10.150.010.4LR			15				50
52.10.040.020.4LR		R0.2	4				50
52.10.060.020.4LR			6				50
52.10.080.020.4LR			8				50
52.10.100.020.4LR			10				50
52.10.120.020.4LR			12				50
52.10.150.020.4LR			15				50
52.10.040.030.4LR		R0.3	4				50
52.10.060.030.4LR			6				50
52.10.080.030.4LR			8				50
52.10.100.030.4LR			10				50
52.10.120.030.4LR			12				50
52.10.150.030.4LR			15				50
52.15.060.005.4LR	1.5	R0.05	6	1.5	1.45	4	50
52.15.080.005.4LR			8				50
52.15.100.005.4LR			10				50
52.15.120.005.4LR			12				50
52.15.150.005.4LR			15				50
52.15.200.005.4LR			20				60
52.15.250.005.4LR			25				75
52.15.300.005.4LR			30				75
52.15.060.010.4LR		R0.1	6				50
52.15.080.010.4LR			8				50
52.15.100.010.4LR			10				50
52.15.120.010.4LR			12				50
52.15.150.010.4LR			15				50
52.15.200.010.4LR			20				60
52.15.250.010.4LR			25				75
52.15.300.010.4LR			30				75
52.15.060.020.4LR		R0.2	6				50
52.15.080.020.4LR			8				50
52.15.100.020.4LR			10				50
52.15.120.020.4LR			12				50
52.15.150.020.4LR			15				50
52.15.200.020.4LR			20				60
52.15.250.020.4LR			25				75
52.15.300.020.4LR			30				75
52.15.060.030.4LR		R0.3	6				50
52.15.080.030.4LR			8				50
52.15.100.030.4LR			10				50
52.15.120.030.4LR			12				50
52.15.150.030.4LR			15				50
52.15.200.030.4LR			20				60
52.15.250.030.4LR			25				75
52.15.300.030.4LR			30				75
52.20.080.010.4LR	2	R0.1	8	2	1.94	4	50
52.20.100.010.4LR			10				50
52.20.120.010.4LR			12				50
52.20.160.010.4LR			16				50
52.20.200.010.4LR			20				60
52.20.250.010.4LR			25				75
52.20.300.010.4LR			30				75
52.20.350.010.4LR			35				75
52.20.400.010.4LR			40				75
52.20.080.020.4LR		R0.2	8				50
52.20.100.020.4LR			10				50
52.20.120.020.4LR			12				50
52.20.160.020.4LR			16				50
52.20.200.020.4LR			20				60
52.20.250.020.4LR			25				75
52.20.300.020.4LR			30				75
52.20.350.020.4LR			35				75
52.20.400.020.4LR			40				75
52.20.080.030.4LR		R0.3	8				50
52.20.100.030.4LR			10				50
52.20.120.030.4LR			12				50
52.20.160.030.4LR			16				50
52.20.200.030.4LR			20				60
52.20.250.030.4LR			25				75
52.20.300.030.4LR			30				75
52.20.350.030.4LR			35				75
52.20.400.030.4LR			40				75
52.20.080.050.4LR		R0.5	8				50
52.20.100.050.4LR			10				50
52.20.120.050.4LR			12				50
52.20.160.050.4LR			16				50
52.20.200.050.4LR			20				60
52.20.250.050.4LR			25				75
52.20.300.050.4LR			30				75
52.20.350.050.4LR			35				75
52.20.400.050.4LR			40				75
52.25.080.010.4LR	2.5	R0.1	8	2.5	2.4	4	50
52.25.100.010.4LR			10				50
52.25.150.010.4LR			15				50
52.25.200.010.4LR			20				60
52.25.250.010.4LR			25				75
52.25.300.010.4LR			30				75
52.25.350.010.4LR			35				75
52.25.400.010.4LR			40				75
52.25.450.010.4LR			45				100
52.25.500.010.4LR			50				100
52.25.080.020.4LR		R0.2	8				50
52.25.100.020.4LR			10				50
52.25.150.020.4LR			15				50
52.25.200.020.4LR			20				60
52.25.250.020.4LR			25				75
52.25.300.020.4LR			30				75
52.25.350.020.4LR			35				75
52.25.400.020.4LR			40				75
52.25.450.020.4LR			45				100
52.25.500.020.4LR			50				100
52.25.080.030.4LR		R0.3	8				50
52.25.100.030.4LR			10				50
52.25.150.030.4LR			15				50
52.25.200.030.4LR			20				60
52.25.250.030.4LR			25				75
52.25.300.030.4LR			30				75
52.25.350.030.4LR			35				75
52.25.400.030.4LR			40				75
52.25.450.030.4LR			45				100
52.25.500.030.4LR			50				100
52.25.080.050.4LR		R0.5	8				50
52.25.100.050.4LR			10				50
52.25.150.050.4LR			15				50
52.25.200.050.4LR			20				60
52.25.250.050.4LR			25				75
52.25.300.050.4LR			30				75
52.25.350.050.4LR			35				75
52.25.400.050.4LR			40				75
52.25.450.050.4LR			45				100
52.25.500.050.4LR			50				100
52.30.100.010.4LR	3	R0.1	10	3	2.85	6	50
52.30.150.010.4LR			15				50
52.30.200.010.4LR			20				60
52.30.250.010.4LR			25				75
52.30.300.010.4LR			30				75
52.30.350.010.4LR			35				75
52.30.400.010.4LR			40				75
52.30.450.010.4LR			45				100
52.30.500.010.4LR			50				100
52.30.550.010.4LR			55				100
52.30.600.010.4LR			60				100
52.30.100.020.4LR		R0.2	10				50
52.30.150.020.4LR			15				50
52.30.200.020.4LR			20				60
52.30.250.020.4LR			25				75
52.30.300.020.4LR			30				75
52.30.350.020.4LR			35				75
52.30.400.020.4LR			40				75
52.30.450.020.4LR			45				100
52.30.500.020.4LR			50				100
52.30.550.020.4LR			55				100
52.30.600.020.4LR			60				100
52.30.100.030.4LR		R0.3	10				50
52.30.150.030.4LR			15				50
52.30.200.030.4LR			20				60
52.30.250.030.4LR			25				75
52.30.300.030.4LR			30				75
52.30.350.030.4LR			35				75
52.30.400.030.4LR			40				75
52.30.450.030.4LR			45				100
52.30.500.030.4LR			50				100
52.30.550.030.4LR			55				100
52.30.600.030.4LR			60				100
52.30.100.050.4LR		R0.5	10				50
52.30.150.050.4LR			15				50
52.30.200.050.4LR			20				60
52.30.250.050.4LR			25				75
52.30.300.050.4LR			30				75
52.30.350.050.4LR			35				75
52.30.400.050.4LR			40				75
52.30.450.050.4LR			45				100
52.30.500.050.4LR			50				100
52.30.550.050.4LR			55				100
52.30.600.050.4LR			60				100
52.30.100.100.4LR		R1	10				50
52.30.150.100.4LR			15				50
52.30.200.100.4LR			20				60
52.30.250.100.4LR			25				75
52.30.300.100.4LR			30				75
52.30.350.100.4LR			35				75
52.30.400.100.4LR			40				75
52.30.450.100.4LR			45				100
52.30.500.100.4LR			50				100
52.30.550.100.4LR			55				100
52.30.600.100.4LR			60				100
52.40.160.010.4LR	4	R0.1	16	4	3.8	6	60
52.40.200.010.4LR			20				60
52.40.250.010.4LR			25				75
52.40.300.010.4LR			30				75
52.40.400.010.4LR			40				75
52.40.500.010.4LR			50				100
52.40.600.010.4LR			60				100
52.40.160.020.4LR		R0.2	16				60
52.40.200.020.4LR			20				60
52.40.250.020.4LR			25				75
52.40.300.020.4LR			30				75
52.40.400.020.4LR			40				75
52.40.500.020.4LR			50				100
52.40.600.020.4LR			60				100
52.40.160.030.4LR		R0.3	16				60
52.40.200.030.4LR			20				60
52.40.250.030.4LR			25				75
52.40.300.030.4LR			30				75
52.40.400.030.4LR			40				75
52.40.500.030.4LR			50				100
52.40.600.030.4LR			60				100
52.40.160.050.4LR		R0.5	16				60
52.40.200.050.4LR			20				60
52.40.250.050.4LR			25				75
52.40.300.050.4LR			30				75
52.40.400.050.4LR			40				75
52.40.500.050.4LR			50				100
52.40.600.050.4LR			60				100
52.40.160.100.4LR		R1	16				60
52.40.200.100.4LR			20				60
52.40.250.100.4LR			25				75
52.40.300.100.4LR			30				75
52.40.400.100.4LR			40				75
52.40.500.100.4LR			50				100
52.40.600.100.4LR			60				100
52.50.0160.010.4LR	5	R0.1	16	5	4.8	6	60
52.50.0200.010.4LR			20				60
52.50.0250.010.4LR			25				75
52.50.0300.010.4LR			30				75
52.50.0400.010.4LR			40				75
52.50.0500.010.4LR			50				100
52.50.0600.010.4LR			60				100
52.50.0160.020.4LR		R0.2	16				60
52.50.0200.020.4LR			20				60
52.50.0250.020.4LR			25				75
52.50.0300.020.4LR			30				75
52.50.0400.020.4LR			40				75
52.50.0500.020.4LR			50				100
52.50.0600.020.4LR			60				100
52.50.0160.030.4LR		R0.3	16				60
52.50.0200.030.4LR			20				60
52.50.0250.030.4LR			25				75
52.50.0300.030.4LR			30				75
52.50.0400.030.4LR			40				75
52.50.0500.030.4LR			50				100
52.50.0600.030.4LR			60				100
52.50.0160.050.4LR		R0.5	16				60
52.50.0200.050.4LR			20				60
52.50.0250.050.4LR			25				75
52.50.0300.050.4LR			30				75
52.50.0400.050.4LR			40				75
52.50.0500.050.4LR			50				100
52.50.0600.050.4LR			60				100
52.50.0160.100.4LR		R1	16				60
52.50.0200.100.4LR			20				60
52.50.0250.100.4LR			25				75
52.50.0300.100.4LR			30				75
52.50.0400.100.4LR			40				75
52.50.0500.100.4LR			50				100
52.50.0600.100.4LR			60				100
