52.10.0080.4F

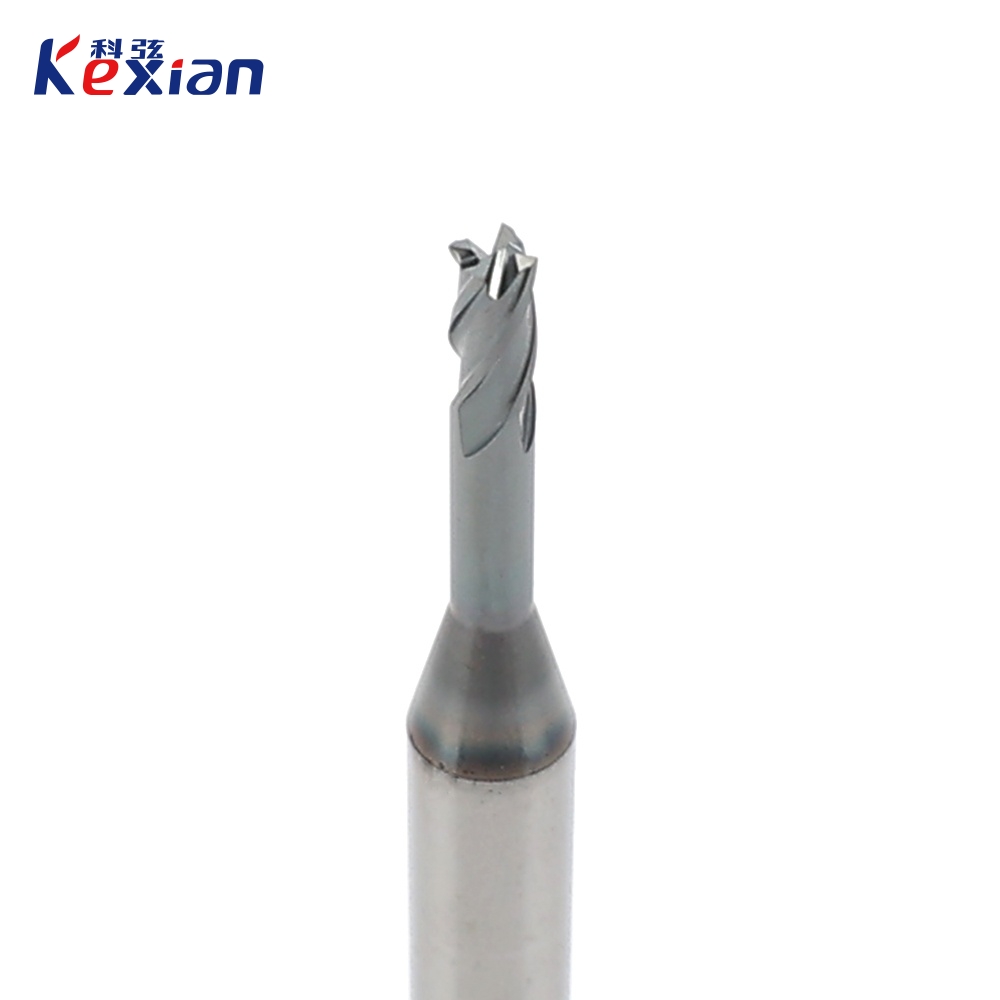

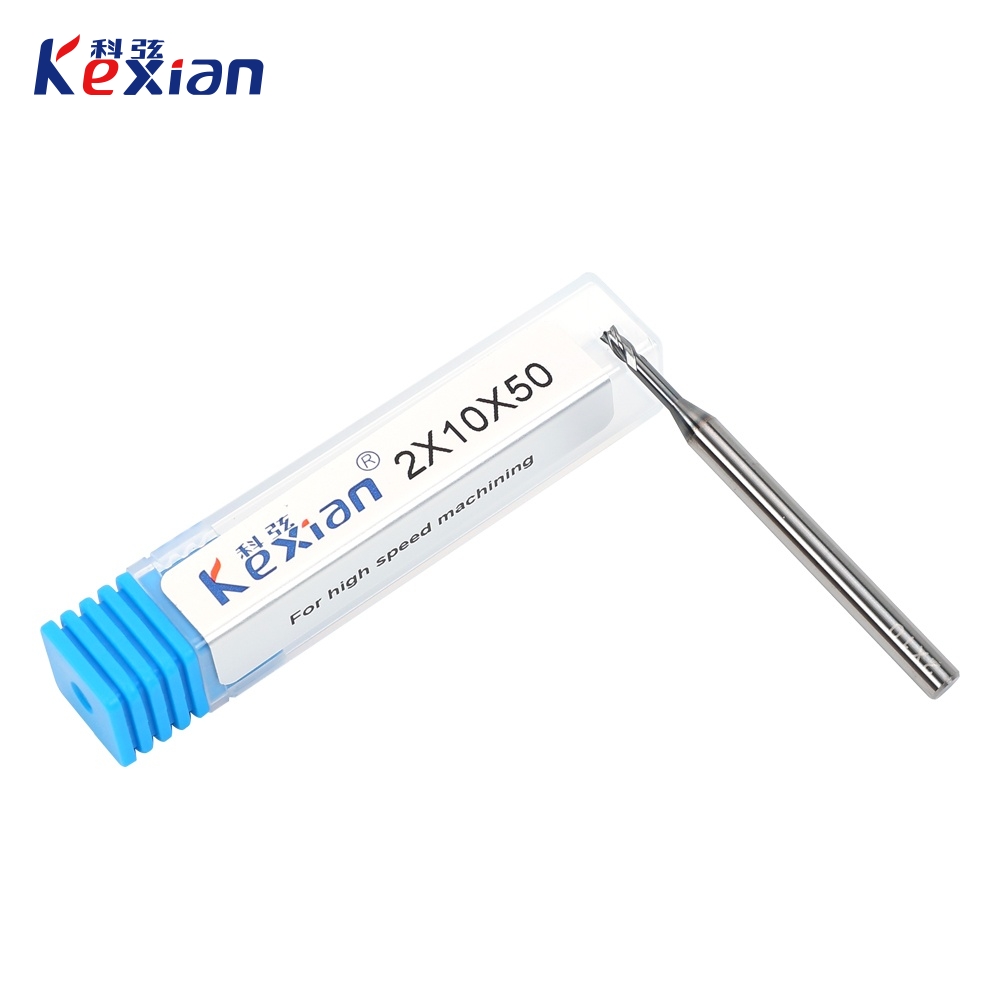

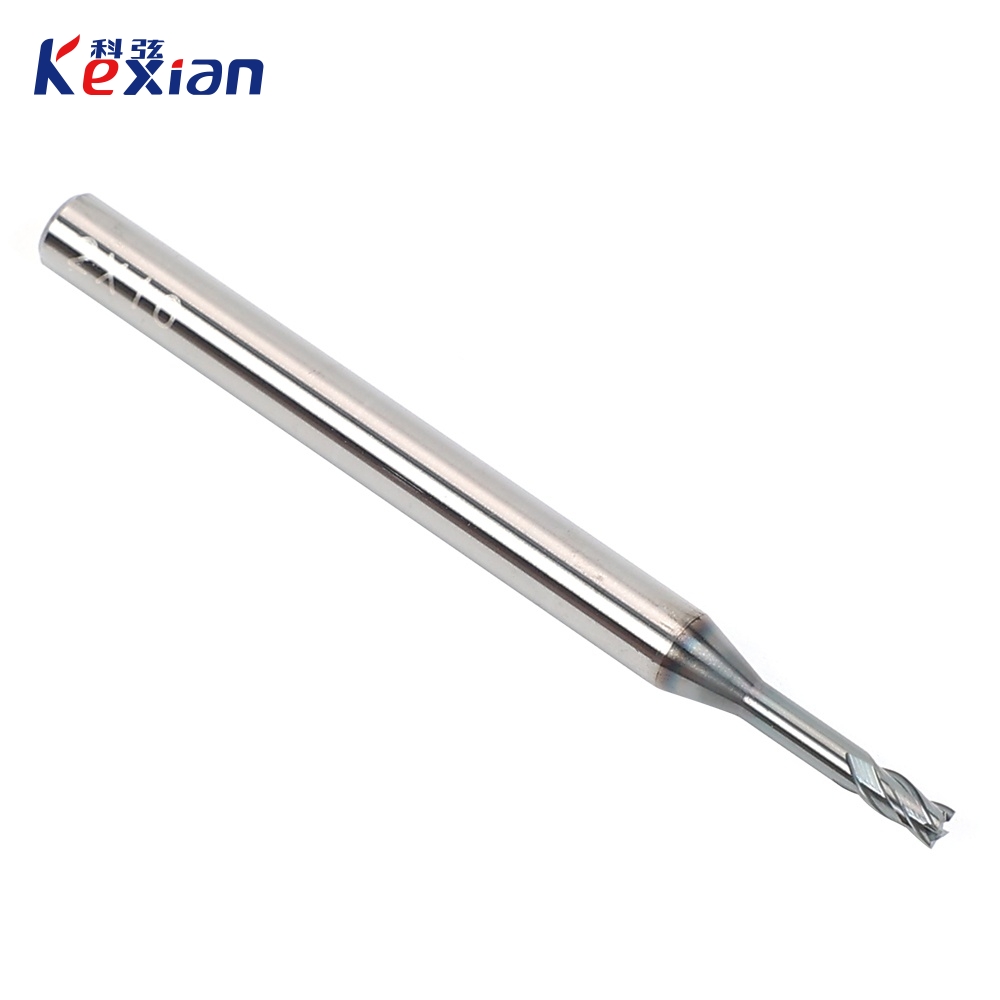

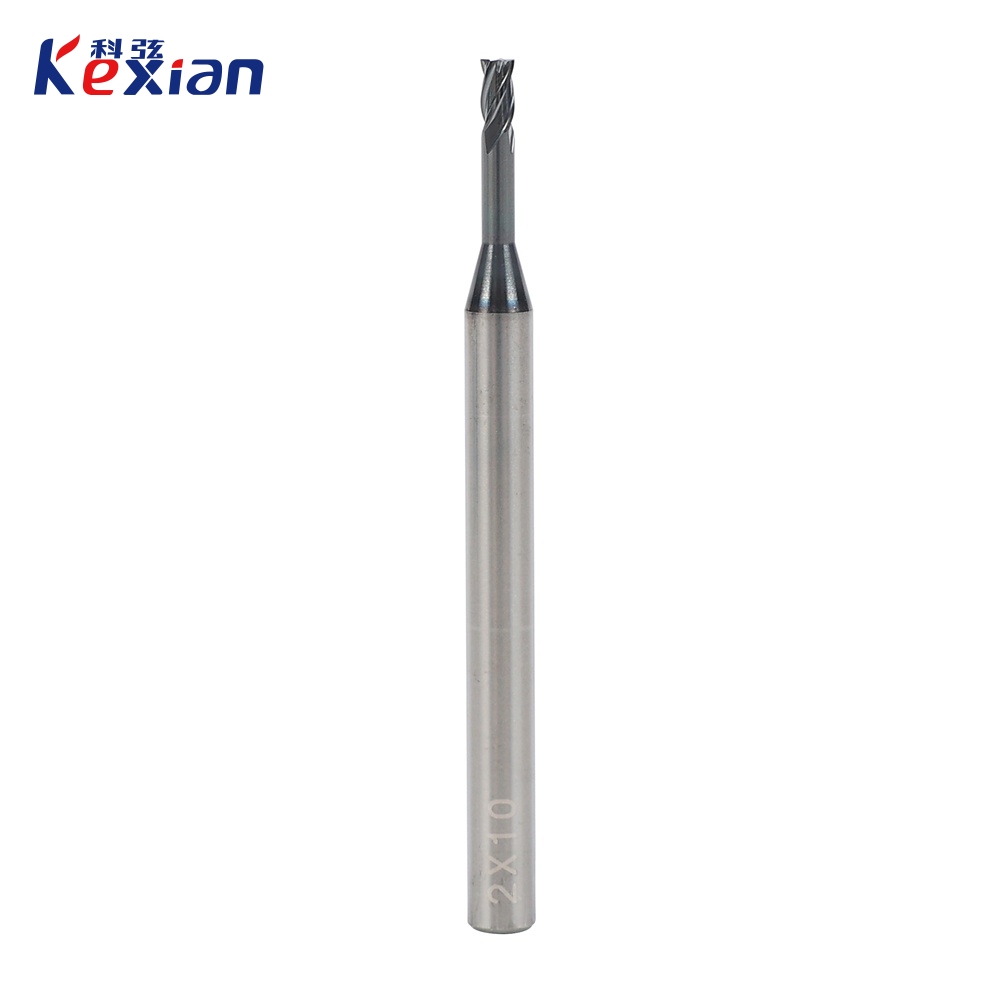

4刃深沟平刀

公差	d=h5
D≤3	0，-0.015
3<D<20	0，-0.02

刀具尺寸

涂层种类	开槽	侧铣	面铣	刃数	螺旋角	适合材料硬度
CrAL				4	30°	HRC≤52

切割材料
非常合适
合适

碳素钢

合金钢

调制钢

铸铁

淬硬钢

不锈钢

钛合金

铝合金

铜

树脂

石墨

高温合金

≤52hrc

>52hrc

订货号	刃径（mm）	避空长（mm）	刃长（mm）	避空径（mm）	柄径（mm）	全长（mm）
52.10.0040.4F	1	4	1.5	0.95	4	50
52.10.0060.4F		6				50
52.10.0080.4F		8				50
52.10.0100.4F		10				50
52.10.0120.4F		12				50
52.10.0150.4F		15				50
52.15.0060.4F	1.5	6	2.25	1.45	4	50
52.15.0080.4F		8				50
52.15.0100.4F		10				50
52.15.0120.4F		12				50
52.15.0150.4F		15				50
52.15.0200.4F		20				60
52.15.0250.4F		25				75
52.15.0300.4F		30				75
52.20.0080.4F	2	8	3	1.94	4	50
52.20.0100.4F		10				50
52.20.0120.4F		12				50
52.20.0160.4F		16				50
52.20.0200.4F		20				60
52.20.0250.4F		25				75
52.20.0300.4F		30				75
52.20.0350.4F		35				75
52.20.0400.4F		40				75
52.25.0080.4F	2.5	8	3.75	2.4	4	50
52.25.0100.4F		10				50
52.25.0150.4F		15				50
52.25.0200.4F		20				60
52.25.0250.4F		25				75
52.25.0300.4F		30				75
52.25.0350.4F		35				75
52.25.0400.4F		40				75
52.25.0450.4F		45				100
52.25.0500.4F		50				100
52.30.0100.4F-6	3	10	4.5	2.85	6	50
52.30.0150.4F-6		15				50
52.30.0200.4F-6		20				60
52.30.0250.4F-6		25				75
52.30.0300.4F-6		30				75
52.30.0350.4F-6		35				75
52.30.0400.4F-6		40				75
52.30.0450.4F-6		45				100
52.30.0500.4F-6		50				100
52.30.0550.4F-6		55				100
52.30.0600.4F-6		60				100
52.40.0160.4F-6	4	16	6	3.8	6	60
52.40.0200.4F-6		20				60
52.40.0250.4F-6		25				75
52.40.0300.4F-6		30				75
52.40.0400.4F-6		40				75
52.40.0500.4F-6		50				100
52.40.0600.4F-6		60				100
52.50.0160.4F-6	5	16	7.5	4.8	6	60
52.50.0200.4F-6		20				60
52.50.0250.4F-6		25				75
52.50.0300.4F-6		30				75
52.50.0400.4F-6		40				75
52.50.0500.4F-6		50				100
52.50.0600.4F-6		60				100
