70 Series

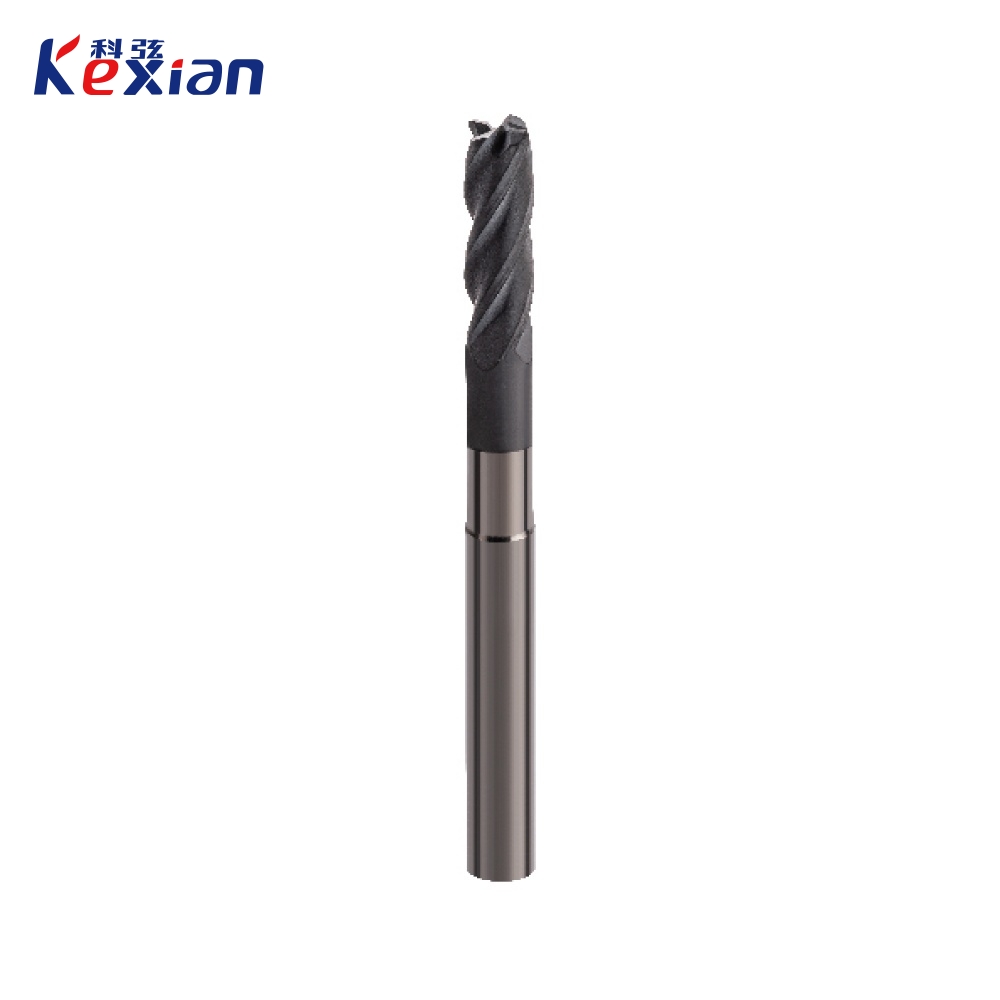

整体硬质合金圆鼻刀
| 公差 | d=h5 |
| D≤3 | 0，-0.015 |
| 3<D<20 | 0，-0.02 |
| R | ±0.005 |
刀具尺寸
| 涂层种类 | 开槽  | 侧铣  | 面铣  | 刃数 | 螺旋角 | 适合材料硬度 |
| DIA |  | | | 4 | 30° |
切割材料
- 非常合适
合适
碳素钢 | 合金钢 | 调制钢 | 铸铁 | 淬硬钢 | 不锈钢 | 钛合金 | 铝合金 | 铜 | 树脂 | 石墨 | 高温合金 | |
| ≤52hrc | >52hrc | |||||||||||
| | | ||||||||||
| 订货号 | 刃径（D） | 圆鼻R角（mm） | 避空长 （ℓ1） | 刃长（ℓ） | 避空径（d1） | 柄径（d） | 全长（L） |
| 70.03.015.01.4F | 3 | R0.1 | 15 | 9 | 2.9 | 3 | 60 |
| 70.03.025.01.4F | 25 | 75 | |||||
| 70.03.030.01.4F | 30 | 100 | |||||
| 70.03.015.02.4F | 3 | R0.2 | 15 | 9 | 2.9 | 3 | 60 |
| 70.03.025.02.4F | 25 | 75 | |||||
| 70.03.030.02.4F | 30 | 100 | |||||
| 70.03.015.03.4F | 3 | R0.3 | 15 | 9 | 2.9 | 3 | 60 |
| 70.03.025.03.4F | 25 | 75 | |||||
| 70.03.030.03.4F | 30 | 100 | |||||
| 70.03.015.05.4F | 3 | R0.5 | 15 | 9 | 2.9 | 3 | 60 |
| 70.03.025.05.4F | 25 | 75 | |||||
| 70.03.030.05.4F | 30 | 100 | |||||
| 70.04.020.01.4F | 4 | R0.1 | 20 | 12 | 3.8 | 4 | 60 |
| 70.04.025.01.4F | 25 | 75 | |||||
| 70.04.030.01.4F | 30 | 100 | |||||
| 70.04.020.02.4F | 4 | R0.2 | 20 | 12 | 3.8 | 4 | 60 |
| 70.04.025.02.4F | 25 | 75 | |||||
| 70.04.030.02.4F | 30 | 100 | |||||
| 70.04.020.05.4F | 4 | R0.5 | 20 | 12 | 3.8 | 4 | 60 |
| 70.04.025.05.4F | 25 | 75 | |||||
| 70.04.030.05.4F | 30 | 100 | |||||
| 70.06.030.02.4F | 6 | R0.2 | 30 | 20 | 5.7 | 6 | 60 |
| 70.06.035.02.4F | 35 | 75 | |||||
| 70.06.040.02.4F | 40 | 100 | |||||
| 70.06.060.02.4F | 60 | 150 | |||||
| 70.06.030.03.4F | 6 | R0.3 | 30 | 20 | 5.7 | 6 | 60 |
| 70.06.035.03.4F | 35 | 75 | |||||
| 70.06.040.03.4F | 40 | 100 | |||||
| 70.06.060.03.4F | 60 | 150 | |||||
| 70.06.030.05.4F | 6 | R0.5 | 30 | 20 | 5.7 | 6 | 60 |
| 70.06.035.05.4F | 35 | 75 | |||||
| 70.06.040.05.4F | 40 | 100 | |||||
| 70.06.060.05.4F | 60 | 150 | |||||
| 70.06.030.10.4F | 6 | R1 | 30 | 20 | 5.7 | 6 | 60 |
| 70.06.035.10.4F | 35 | 75 | |||||
| 70.06.040.10.4F | 40 | 100 | |||||
| 70.06.060.10.4F | 60 | 150 | |||||
| 70.08.020.02.4F | 8 | R0.2 | 20 | 8 | 60 | ||
| 70.08.040.02.4F | 8 | R0.2 | 40 | 25 | 7.7 | 8 | 80 |
| 70.08.060.02.4F | 60 | 110 | |||||
| 70.08.060.02L.4F | 60 | 150 | |||||
| 70.08.020.05.4F | 8 | R0.5 | 60 | ||||
| 70.08.040.05.4F | 8 | R0.5 | 40 | 25 | 7.7 | 8 | 80 |
| 70.08.060.05.4F | 60 | 110 | |||||
| 70.08.060.05L.4F | 60 | 150 | |||||
| 70.08.040.10.4F | 8 | R1.0 | 40 | 25 | 7.7 | 8 | 80 |
| 70.08.060.10.4F | 60 | 110 | |||||
| 70.08.060.10L.4F | 60 | 150 | |||||
| 70.10.040.05.4F | 10 | R0.5 | 40 | 30 | 9.7 | 10 | 80 |
| 70.10.060.05.4F | 60 | 110 | |||||
| 70.10.060.05L.4F | 60 | 150 | |||||
| 70.10.040.10.4F | 10 | R1.0 | 40 | 30 | 9.7 | 10 | 80 |
| 70.10.060.10.4F | 60 | 110 | |||||
| 70.10.060.10L.4F | 60 | 150 | |||||
| 70.12.040.05.4F | 12 | R0.5 | 40 | 30 | 11.7 | 12 | 80 |
| 70.12.060.05.4F | 12 | R0.5 | 60 | 35 | 11.7 | 12 | 110 |
| 70.12.060.05L.4F | 60 | 150 | |||||
| 70.12.040.10.4F | 12.0 | R1.0 | 40 | 30 | 11.7 | 12 | 80 |
| 70.12.060.10.4F | 12.0 | R1.0 | 60 | 35 | 11.7 | 12 | 110 |
| 70.12.060.10L.4F | 60 | 150 | |||||
| 70.16.100.05.4F | 16 | R0.5 | 100 | 40 | 15.5 | 16 | 150 |
| 70.16.100.10.4F | 16 | R1 | 100 | 40 | 15.5 | 16 | 150 |
