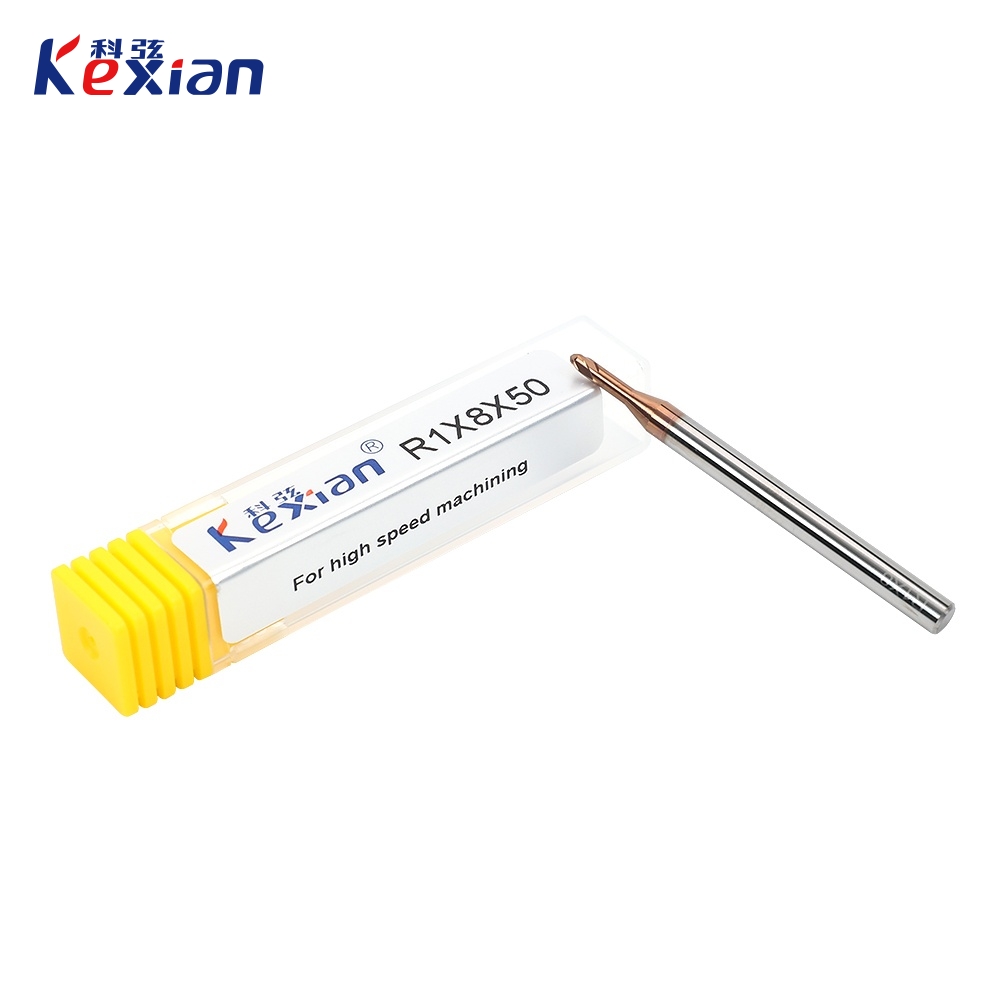

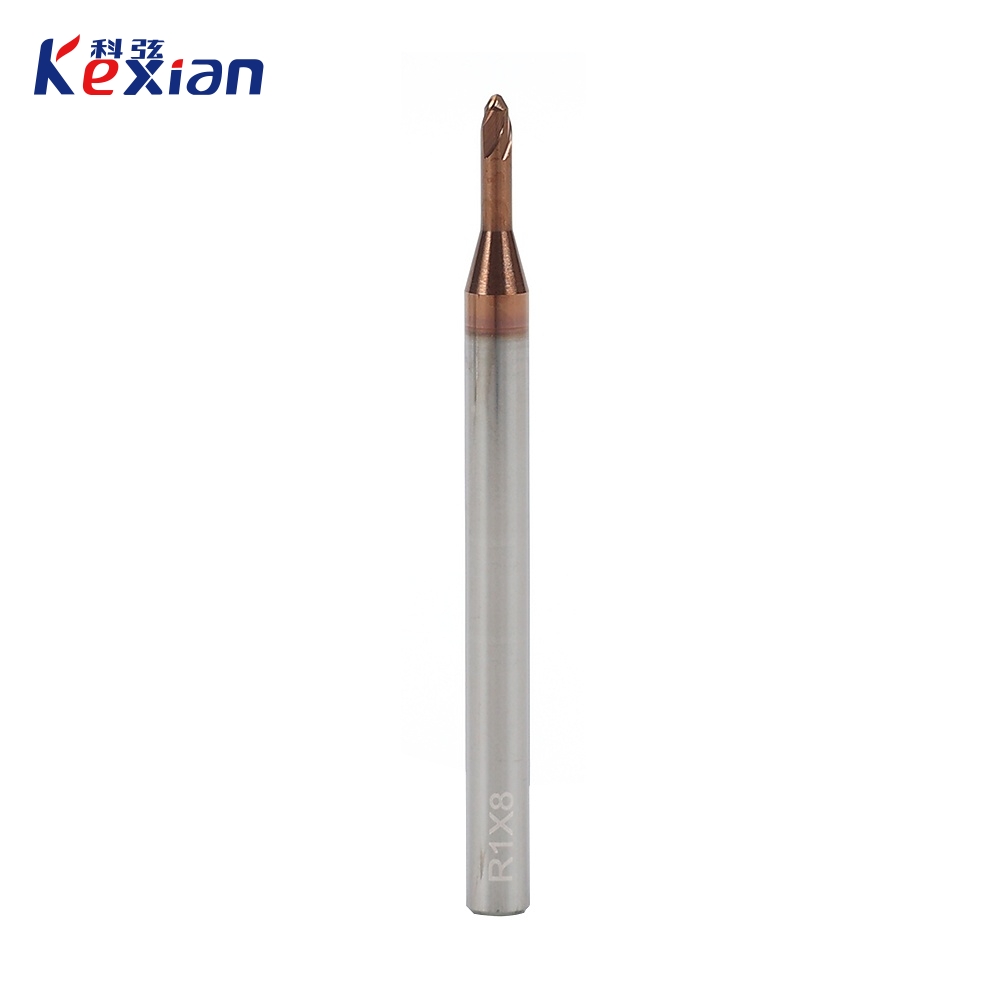

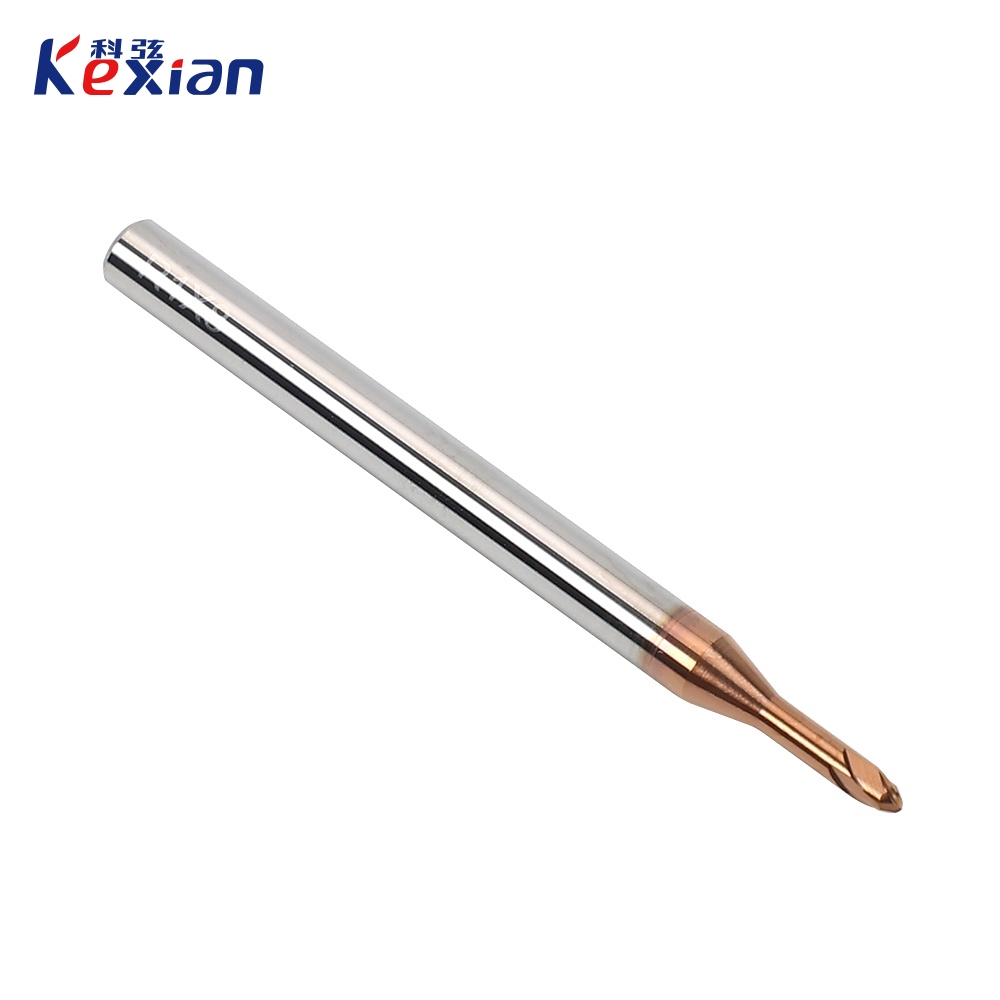

65.20.080.2LB

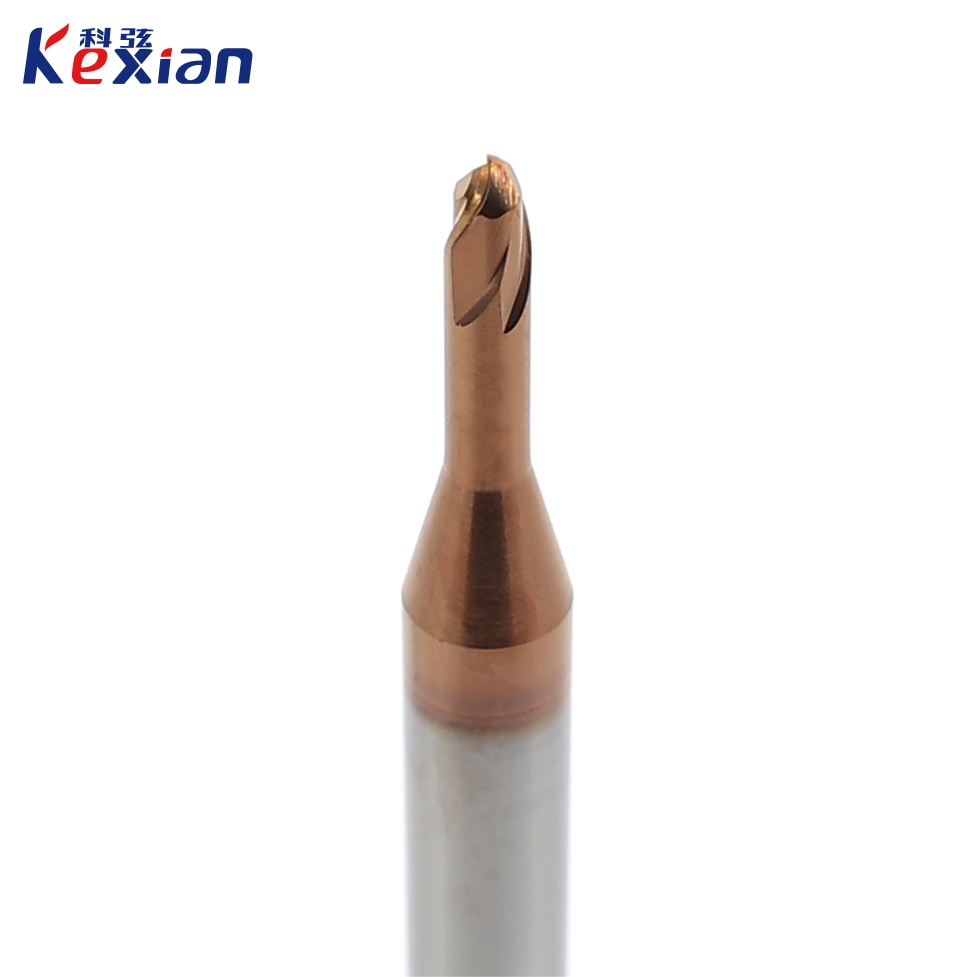

2刃深沟球刀

公差	d=h5
D≤3	0，-0.015
3<D<20	0，-0.02
R<1	±0.005
R≥1	±0.01

刀具尺寸

涂层种类	仿形铣	刃数	螺旋角	适合材料硬度
TiSi		2	30°	HRC≤65

切割材料
非常合适
合适

碳素钢

合金钢

调制钢

铸铁

淬硬钢

不锈钢

钛合金

铝合金

铜

树脂

石墨

高温合金

≤52hrc

>52hrc

订货号	球头半径 (mm)	避空长 (mm)	刃长 (mm)	避空径 (mm)	柄径 (mm)	全长 (mm)
65.01.003.2LB	R0.05	0.3	0.07	0.085	4	45
65.01.005.2LB	R0.05	0.5	0.07	0.085	4	45
65.015.003.2LB	R0.075	0.3	0.105	0.13	4	45
65.015.005.2LB		0.5				45
65.015.010.2LB		1				45
65.02.006.2LB	R0.1	0.6	0.14	0.18	4	45
65.02.008.2LB		0.8				45
65.02.010.2LB		1				45
65.02.012.2LB		1.2				45
65.02.015.2LB		1.5				45
65.02.020.2LB		2				45
65.03.008.2LB	R0.15	0.8	0.21	0.28	4	45
65.03.010.2LB		1				45
65.03.012.2LB		1.2				45
65.03.015.2LB		1.5				45
65.03.020.2LB		2				45
65.03.025.2LB		2.5				45
65.03.030.2LB		3				45
65.04.010.2LB	R0.2	1	0.28	0.37	4	45
65.04.015.2LB		1.5				45
65.04.020.2LB		2				45
65.04.025.2LB		2.5				45
65.04.030.2LB		3				45
65.04.040.2LB		4				45
65.04.050.2LB		5				45
65.04.060.2LB		6				45
65.05.015.2LB	R0.25	1.5	0.35	0.46	4	45
65.05.020.2LB		2				45
65.05.030.2LB		3				45
65.05.040.2LB		4				45
65.05.060.2LB		6				45
65.05.080.2LB		8				45
65.05.100.2LB		10				50
65.06.015.2LB	R0.3	1.5	0.42	0.56	4	45
65.06.020.2LB		2				45
65.06.040.2LB		4				45
65.06.060.2LB		6				45
65.06.080.2LB		8				45
65.06.100.2LB		10				50
65.08.020.2LB	R0.4	2	0.56	0.76	4	45
65.08.030.2LB		3				45
65.08.040.2LB		4				45
65.08.060.2LB		6				45
65.08.080.2LB		8				45
65.08.100.2LB		10				50
65.08.120.2LB		12				50
65.10.030.2LB	R0.5	3	0.7	0.95	4	50
65.10.040.2LB		4				50
65.10.060.2LB		6				50
65.10.080.2LB		8				50
65.10.100.2LB		10				50
65.10.120.2LB		12				50
65.10.150.2LB		15				50
65.12.040.2LB	R0.6	4	0.84	1.15	4	50
65.12.060.2LB		6				50
65.12.080.2LB		8				50
65.12.100.2LB		10				50
65.12.120.2LB		12				50
65.12.150.2LB		15				50
65.15.040.2LB	R0.75	4	1.05	1.45	4	50
65.15.060.2LB		6				50
65.15.080.2LB		8				50
65.15.100.2LB		10				50
65.15.120.2LB		12				50
65.15.150.2LB		15				50
65.15.200.2LB		20				60
65.15.250.2LB		25				75
65.15.300.2LB		30				75
65.20.060.2LB	R1	6	1.4	1.94	4	50
65.20.080.2LB		8				50
65.20.100.2LB		10				50
65.20.120.2LB		12				50
65.20.160.2LB		16				50
65.20.200.2LB		20				60
65.20.250.2LB		25				75
65.20.300.2LB		30				75
65.20.350.2LB		35				75
65.20.400.2LB		40				75
65.25.080.2LB	R1.25	8	1.75	2.4	4	50
65.25.100.2LB		10				50
65.25.150.2LB		15				50
65.25.200.2LB		20				60
65.25.250.2LB		25				75
65.25.300.2LB		30				75
65.25.350.2LB		35				75
65.25.400.2LB		40			6	75
65.25.450.2LB		45				100
65.25.500.2LB		50				100
65.30.100.2LB	R1.5	10	2.1	2.85	6	50
65.30.150.2LB		15				60
65.30.200.2LB		20				60
65.30.250.2LB		25				75
65.30.300.2LB		30				75
65.30.350.2LB		35				75
65.30.400.2LB		40				75
65.30.450.2LB		45				100
65.30.500.2LB		50				100
65.30.550.2LB		55				100
65.30.600.2LB		60				100
65.40.120.2LB	R2	12	2.8	3.8	6	60
65.40.160.2LB		16				60
65.40.200.2LB		20				60
65.40.250.2LB		25				75
65.40.300.2LB		30				75
65.40.400.2LB		40				75
65.40.500.2LB		50				100
65.40.600.2LB		60				100
65.40.700.2LB		70				110
65.40.800.2LB		80				120
65.50.160.2LB	R2.5	16	3.5	2.8	6	60
65.50.200.2LB		20				60
65.50.250.2LB		25				75
65.50.300.2LB		30				75
65.50.400.2LB		40				75
65.50.500.2LB		50				100
65.50.600.2LB		60				100
65.50.800.2LB		80				120
