65.040.11.05.050.4R

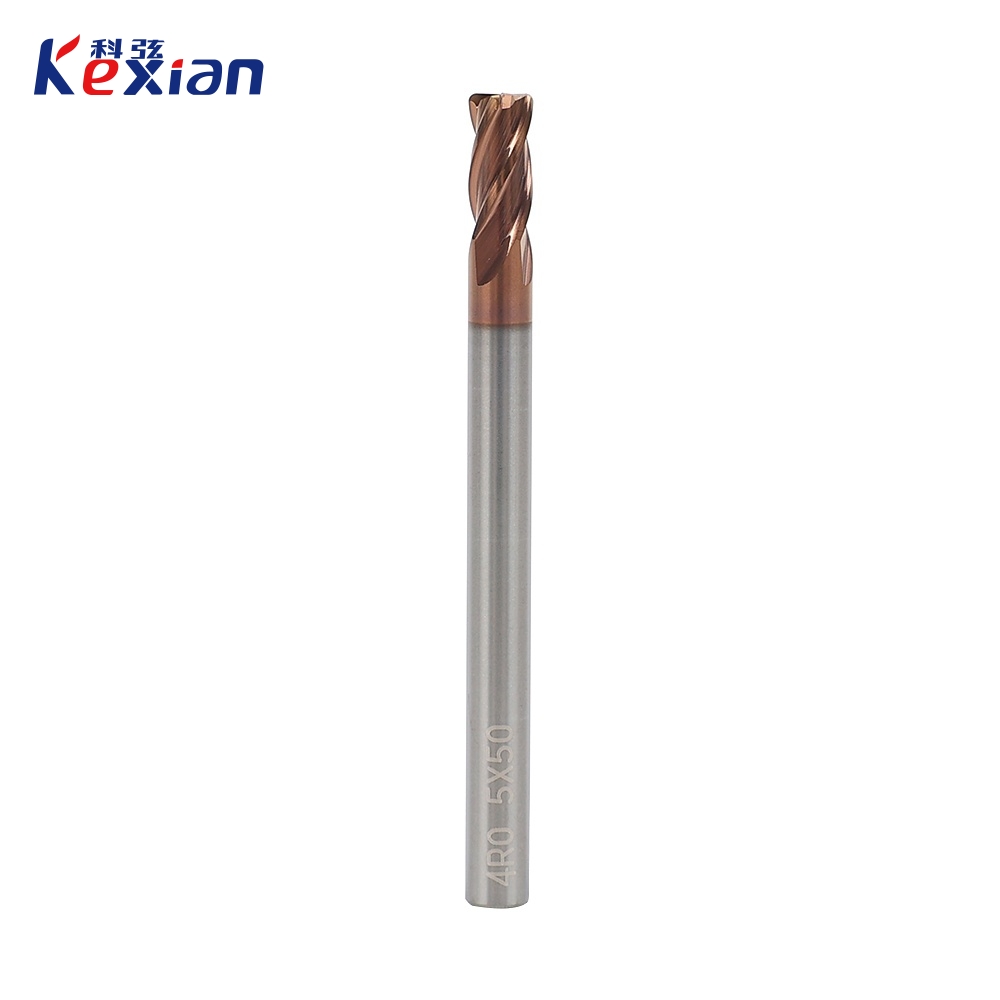

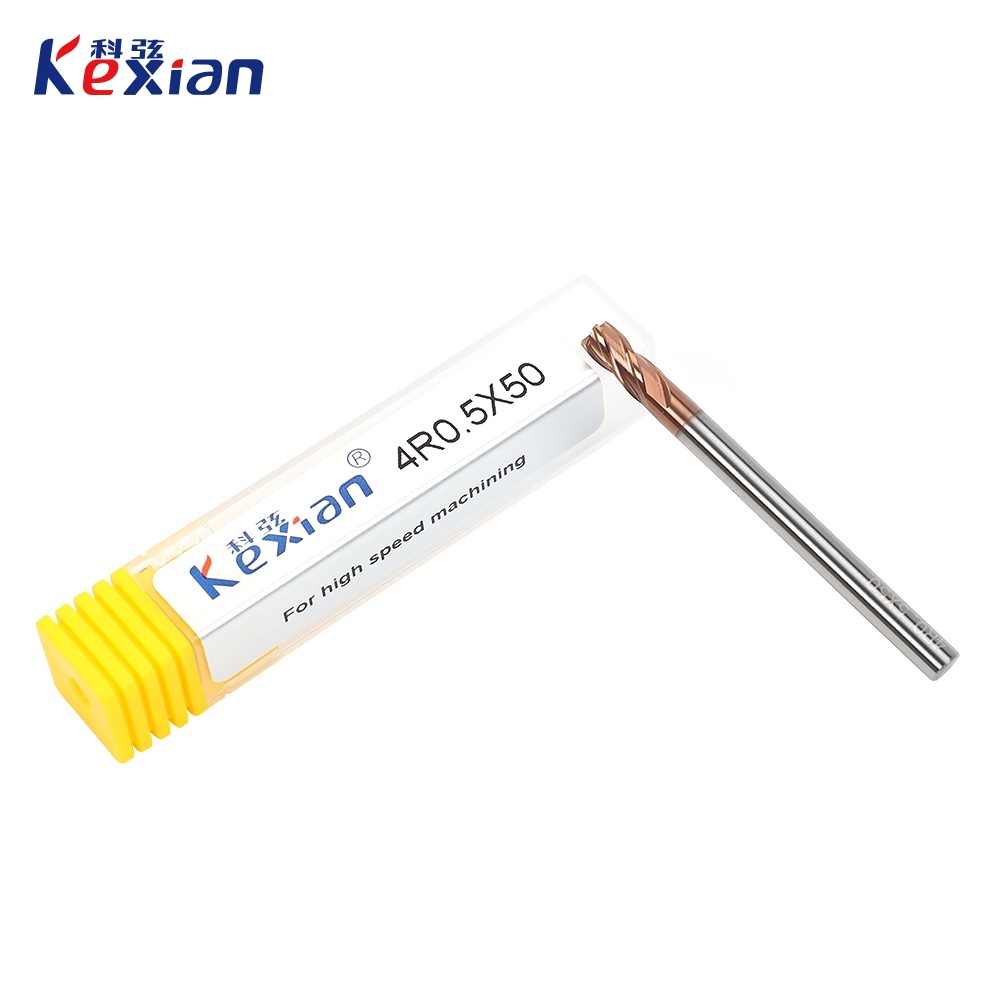

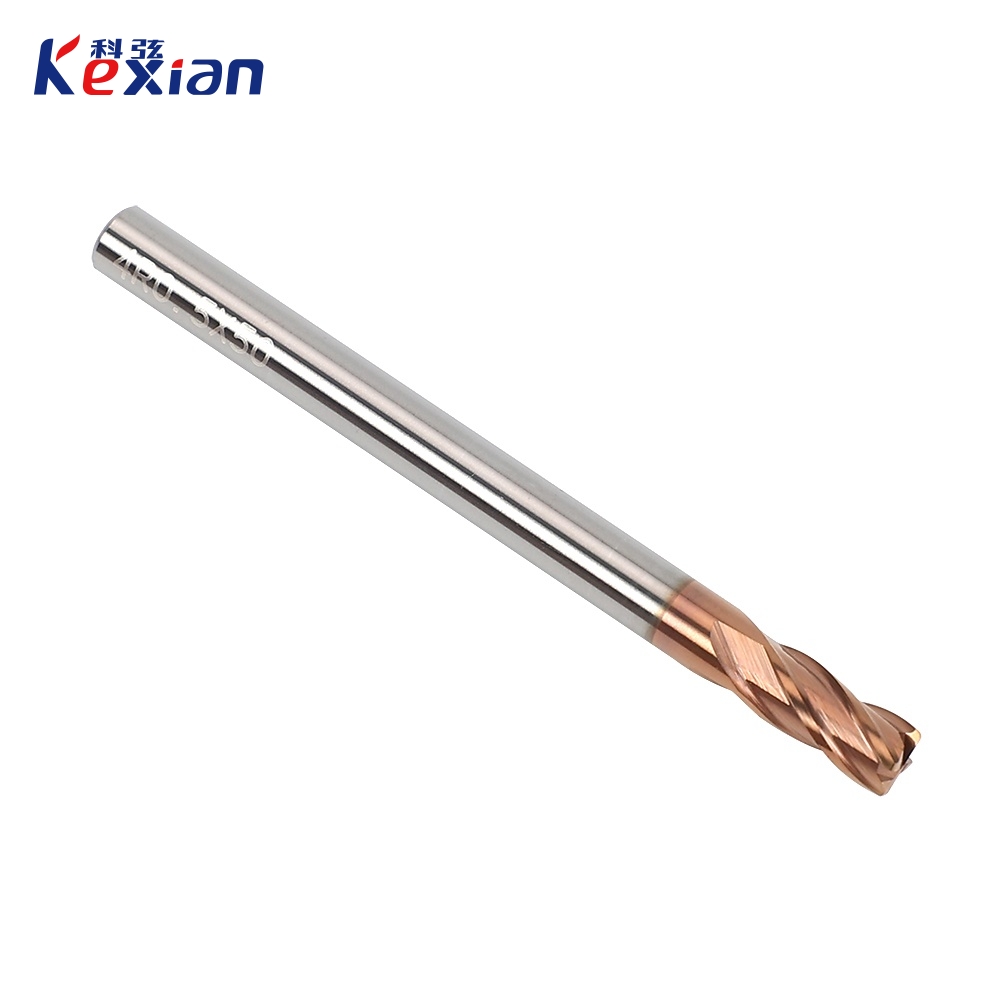

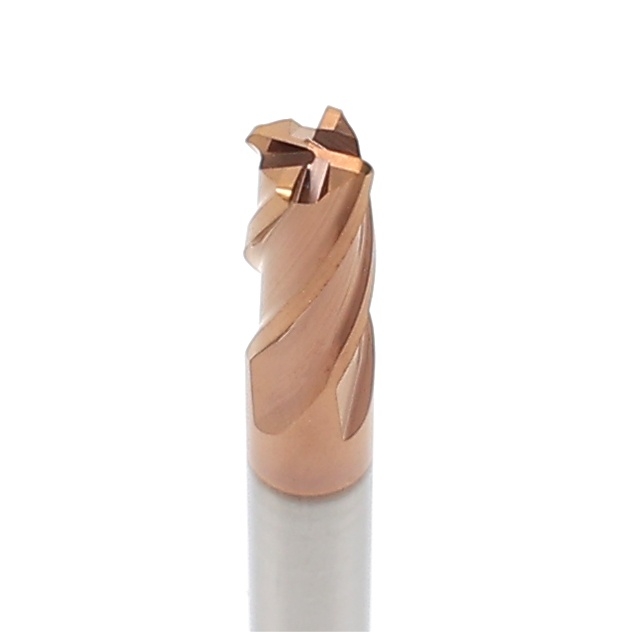

4刃直柄圆鼻刀

公差	d=h5
D≤3	0，-0.015
3<D<20	0，-0.02
R	±0.005

刀具尺寸

涂层种类	开槽	侧铣	面铣	刃数	螺旋角	适合材料硬度
Tisi				4	30°	HRC≤65

切割材料
非常合适
合适

碳素钢

合金钢

调制钢

铸铁

淬硬钢

不锈钢

钛合金

铝合金

铜

树脂

石墨

高温合金

≤52hrc

>52hrc

订货号	刃径 (mm)	圆鼻R角 (mm)	刃长 (mm)	柄径 (mm)	全长 (mm)
65.040.08.01.050.4R	4	R0.1	8	4	50
65.040.08.02.050.4R		R0.2			50
65.040.08.03.050.4R		R0.3			50
65.040.08.05.050.4R		R0.5			50
65.040.08.10.050.4R		R1			50
65.060.12.01.050.4R	6	R0.1	12	6	50
65.060.12.01.060.4R					60
65.060.12.01.075.4R					75
65.060.12.01.100.4R					100
65.060.12.02.050.4R	6	R0.2	12	6	50
65.060.12.02.060.4R					60
65.060.12.02.075.4R					75
65.060.12.02.100.4R					100
65.060.12.03.050.4R	6	R0.3	12	6	50
65.060.12.03.060.4R					60
65.060.12.03.075.4R					75
65.060.12.03.100.4R					100
65.060.12.05.050.4R	6	R0.5	12	6	50
65.060.12.05.060.4R					60
65.060.12.05.075.4R					75
65.060.12.05.100.4R					100
65.060.12.10.050.4R	6	R1	12	6	50
65.060.12.10.060.4R					60
65.060.12.10.075.4R					75
65.060.12.10.100.4R					100
65.080.16.01.060.4R	8	R0.1	16	8	60
65.080.16.01.075.4R					75
65.080.16.01.100.4R					100
65.080.16.01.150.4R					150
65.080.16.02.060.4R	8	R0.2	16	8	60
65.080.16.02.075.4R					75
65.080.16.02.100.4R					100
65.080.16.02.150.4R					150
65.080.16.03.060.4R	8	R0.3	16	8	60
65.080.16.03.075.4R					75
65.080.16.03.100.4R					100
65.080.16.03.150.4R					150
65.080.16.05.060.4R	8	R0.5	16	8	60
65.080.16.05.075.4R					75
65.080.16.05.100.4R					100
65.080.16.05.150.4R					150
65.080.16.10.060.4R	8	R1	16	8	60
65.080.16.10.075.4R					75
65.080.16.10.100.4R					100
65.080.16.10.150.4R					150
65.080.16.20.060.4R	8	R2	16	8	60
65.080.16.20.075.4R					75
65.080.16.20.100.4R					100
65.080.16.20.150.4R					150
65.100.20.01.075.4R	10	R0.1	20	10	75
65.100.20.01.100.4R					100
65.100.20.01.150.4R					150
65.100.20.02.075.4R	10	R0.2	20	10	75
65.100.20.02.100.4R					100
65.100.20.02.150.4R					150
65.100.20.03.075.4R	10	R0.3	20	10	75
65.100.20.03.100.4R					100
65.100.20.03.150.4R					150
65.100.20.05.075.4R	10	R0.5	20	10	75
65.100.20.05.100.4R					100
65.100.20.05.150.4R					150
65.100.20.10.075.4R	10	R1	20	10	75
65.100.20.10.100.4R					100
65.100.20.10.150.4R					150
65.100.20.20.075.4R	10	R2	20	10	75
65.100.20.20.100.4R					100
65.100.20.20.150.4R					150
65.120.24.01.075.4R	12	R0.1	24	12	75
65.120.24.01.100.4R					100
65.120.24.01.150.4R					150
65.120.24.02.075.4R	12	R0.2	24	12	75
65.120.24.02.100.4R					100
65.120.24.02.150.4R					150
65.120.24.03.075.4R	12	R0.3	24	12	75
65.120.24.03.100.4R					100
65.120.24.03.150.4R					150
65.120.24.05.075.4R	12	R0.5	24	12	75
65.120.24.05.100.4R					100
65.120.24.05.150.4R					150
65.120.24.10.075.4R	12	R1	24	12	75
65.120.24.10.100.4R					100
65.120.24.10.150.4R					150
65.120.24.20.075.4R	12	R2	24	12	75
65.120.24.20.100.4R					100
65.120.24.20.150.4R					150
65.160.32.05.100.4R	16	R0.5	32	16	100
65.160.32.05.150.4R					150
65.160.32.10.100.4R	16	R1	32	16	100
65.160.32.10.150.4R					150
65.160.32.20.100.4R	16	R2	32	16	100
65.160.32.20.150.4R					150
65.160.32.30.100.4R	16	R3	32	16	100
65.160.32.30.150.4R					150
