65.010.020.005.4R

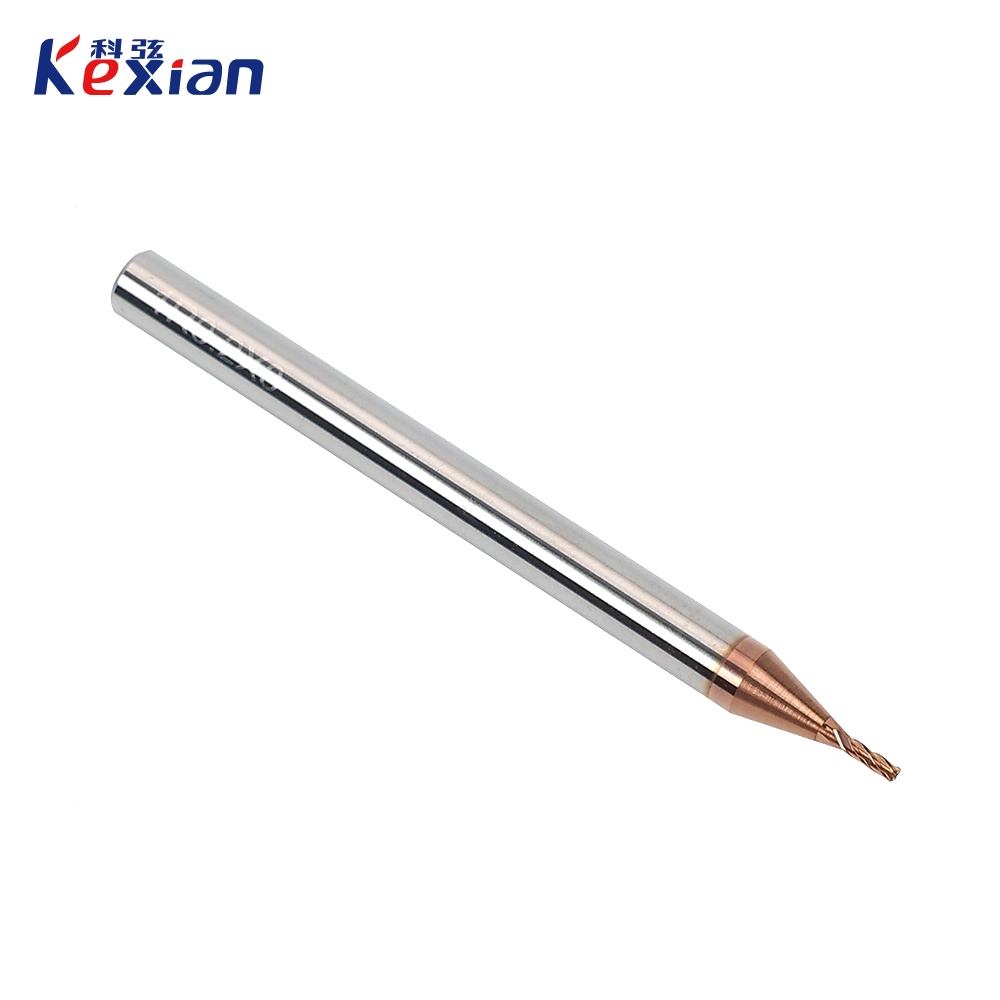

4刃段差圆鼻刀

公差	d=h5
D≤3	0，-0.015
3<D<20	0，-0.02
R	±0.005

刀具尺寸

涂层种类	开槽	侧铣	面铣	刃数	螺旋角	适合材料硬度
Tisi				4	30°	HRC≤65

切割材料
非常合适
合适

碳素钢

合金钢

调制钢

铸铁

淬硬钢

不锈钢

钛合金

铝合金

铜

树脂

石墨

高温合金

≤52hrc

>52hrc

订货号	刃径(mm)	圆鼻R角 (mm)	刃长 (mm)	柄径 (mm)	全长 (mm)
65.010.020.005.4R	1	R0.05	2	4	50
65.010.020.010.4R		R0.1			50
65.010.020.020.4R		R0.2			50
65.010.020.030.4R		R0.3			50
65.015.030.005.4R	1.5	R0.05	3	4	50
65.015.030.010.4R		R0.1			50
65.015.030.020.4R		R0.2			50
65.015.030.030.4R		R0.3			50
65.020.040.005.4R	2	R0.05	4	4	50
65.020.040.010.4R		R0.1			50
65.020.040.020.4R		R0.2			50
65.020.040.030.4R		R0.3			50
65.020.040.050.4R		R0.5			50
65.030.060.005.4R	3	R0.05	6	4	50
65.030.060.010.4R		R0.1			50
65.030.060.020.4R		R0.2			50
65.030.060.030.4R		R0.3			50
65.030.060.050.4R		R0.5			50
65.030.060.100.4R		R1			50
65.030.060.005.4R-6	3	R0.05	6	6	50
65.030.060.010.4R-6		R0.1			50
65.030.060.020.4R-6		R0.2			50
65.030.060.030.4R-6		R0.3			50
65.030.060.050.4R-6		R0.5			50
65.030.060.100.4R-6		R1			50
65.040.080.010.4R-6	4	R0.1	8	6	50
65.040.080.020.4R-6		R0.2			50
65.040.080.030.4R-6		R0.3			50
65.040.080.050.4R-6		R0.5			50
65.040.080.100.4R-6		R1			50
65.050.100.010.4R-6	5	R0.1	10	6	50
65.050.100.020.4R-6		R0.2			50
65.050.100.030.4R-6		R0.3			50
65.050.100.050.4R-6		R0.5			50
65.050.100.100.4R-6		R1			50
