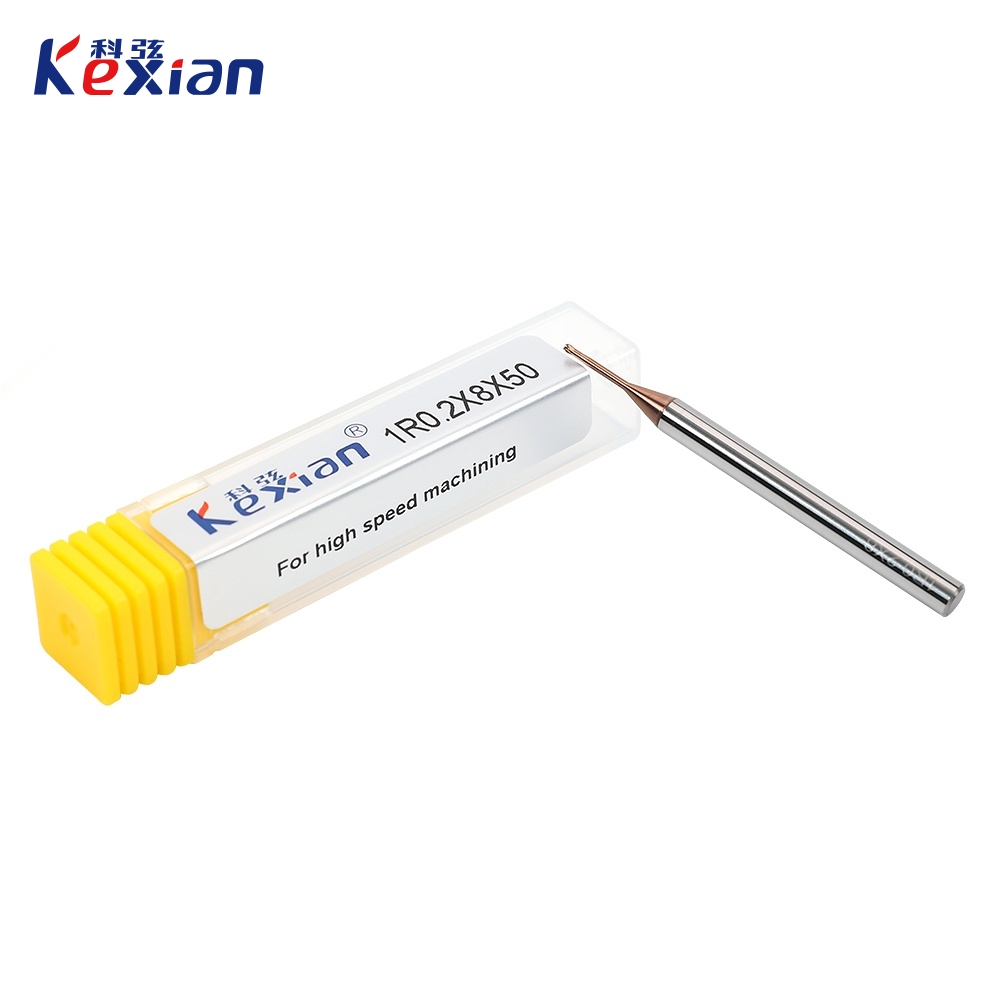

65.10.080.020.4LR

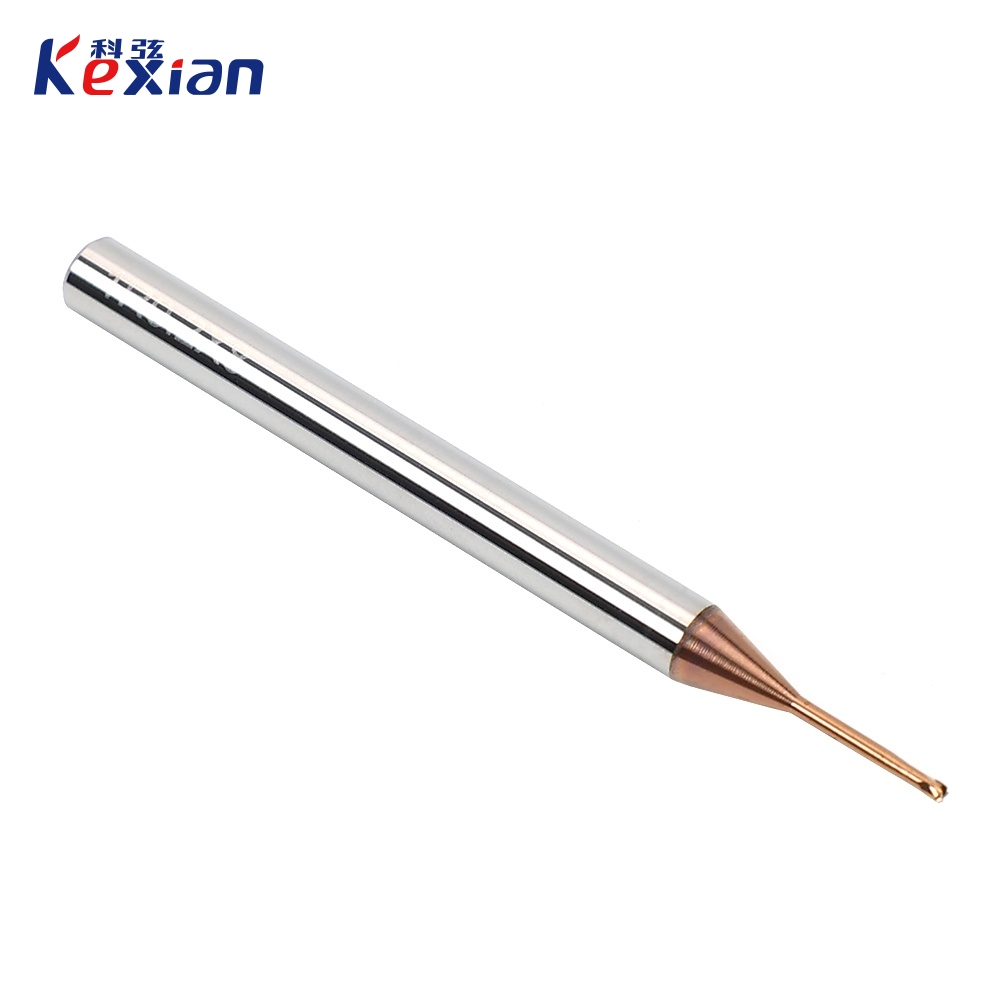

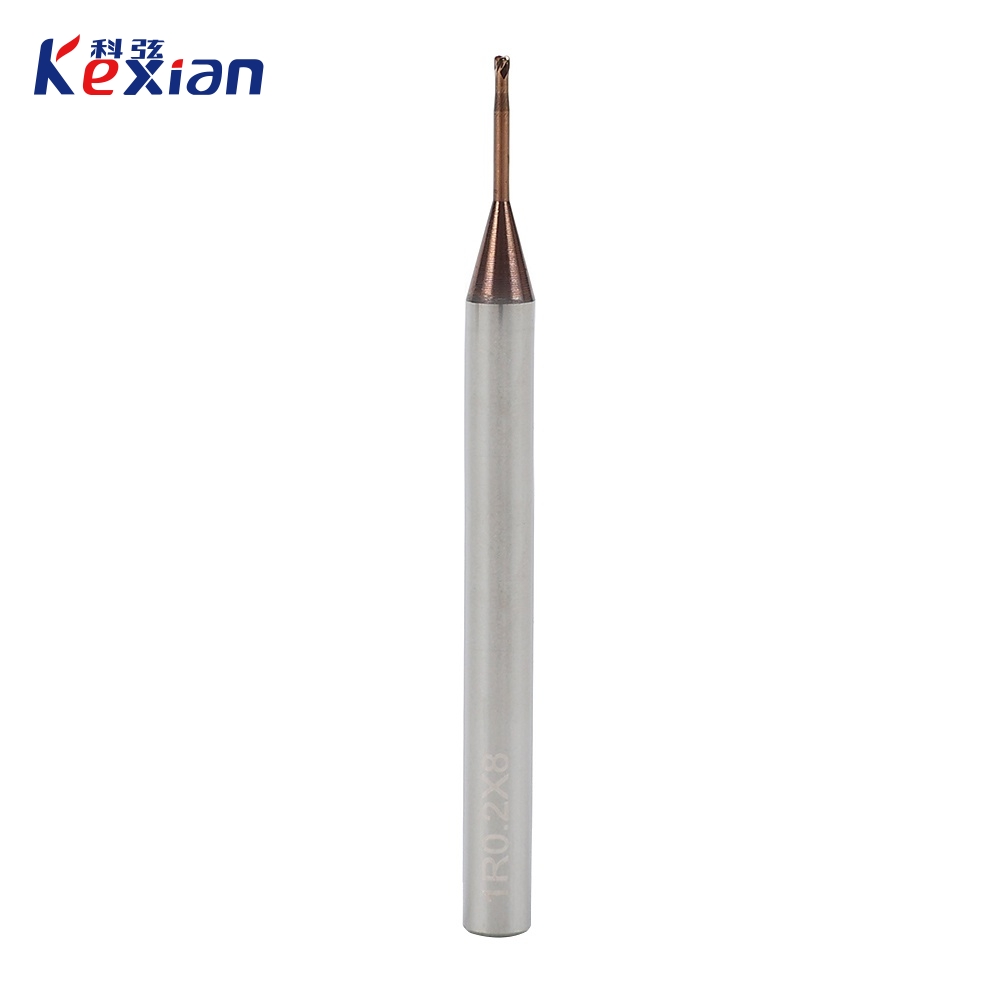

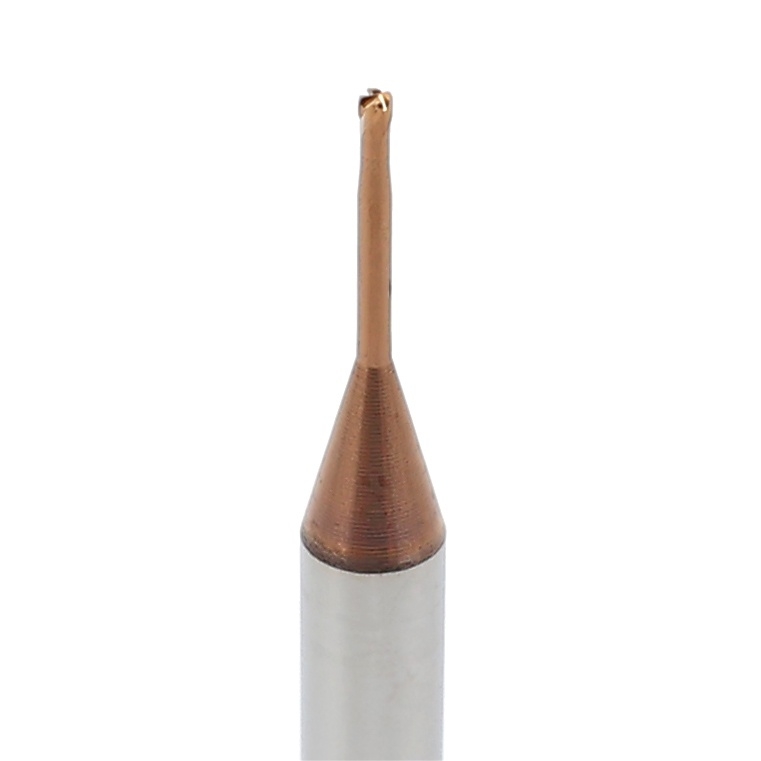

4刃深沟圆鼻刀

公差	d=h5
D≤3	0，-0.015
3<D<20	0，-0.02
R	±0.005

刀具尺寸

涂层种类	开槽	侧铣	面铣	刃数	螺旋角	适合材料硬度
Tisi				4	30°	HRC≤65

切割材料
非常合适
合适

碳素钢

合金钢

调制钢

铸铁

淬硬钢

不锈钢

钛合金

铝合金

铜

树脂

石墨

高温合金

≤52hrc

>52hrc

订货号	刃径(mm)	圆鼻R角 (mm)	避空长(mm)	刃长 (mm)	避空径 (mm)	柄径 (mm)	全长 (mm)
65.10.030.005.4LR	1	R0.05	3	0.8	0.95	4	50
65.10.040.005.4LR			4				50
65.10.060.005.4LR			6				50
65.10.080.005.4LR			8				50
65.10.100.005.4LR			10				50
65.10.120.005.4LR			12				50
65.10.150.005.4LR			15				50
65.10.030.010.4LR		0.1	3				50
65.10.040.010.4LR			4				50
65.10.060.010.4LR			6				50
65.10.080.010.4LR			8				50
65.10.100.010.4LR			10				50
65.10.120.010.4LR			12				50
65.10.150.010.4LR			15				50
65.10.030.020.4LR		R0.2	3				50
65.10.040.020.4LR			4				50
65.10.060.020.4LR			6				50
65.10.080.020.4LR			8				50
65.10.100.020.4LR			10				50
65.10.120.020.4LR			12				50
65.10.150.020.4LR			15				50
65.10.030.030.4LR		R0.3	3				50
65.10.040.030.4LR			4				50
65.10.060.030.4LR			6				50
65.10.080.030.4LR			8				50
65.10.100.030.4LR			10				50
65.10.120.030.4LR			12				50
65.10.150.030.4LR			15				50
65.15.040.005.4LR	1.5	R0.05	4	1.2	1.43	4	50
65.15.060.005.4LR			6				50
65.15.080.005.4LR			8				50
65.15.100.005.4LR			10				50
65.15.120.005.4LR			12				50
65.15.150.005.4LR			15				50
65.15.200.005.4LR			20				60
65.15.250.005.4LR			25				75
65.15.300.005.4LR			30				75
65.15.040.010.4LR		R0.1	4				50
65.15.060.010.4LR			6				50
65.15.080.010.4LR			8				50
65.15.100.010.4LR			10				50
65.15.120.010.4LR			12				50
65.15.150.010.4LR			15				50
65.15.200.010.4LR			20				60
65.15.250.010.4LR			25				75
65.15.300.010.4LR			30				75
65.15.040.020.4LR		R0.2	4				50
65.15.060.020.4LR			6				50
65.15.080.020.4LR			8				50
65.15.100.020.4LR			10				50
65.15.120.020.4LR			12				50
65.15.150.020.4LR			15				50
65.15.200.020.4LR			20				60
65.15.250.020.4LR			25				75
65.15.300.020.4LR			30				75
65.15.040.030.4LR		R0.3	4				50
65.15.060.030.4LR			6				50
65.15.080.030.4LR			8				50
65.15.100.030.4LR			10				50
65.15.120.030.4LR			12				50
65.15.150.030.4LR			15				50
65.15.200.030.4LR			20				60
65.15.250.030.4LR			25				75
65.15.300.030.4LR			30				75
65.20.060.010.4LR	2	R0.1	6	1.6	1.91	4	50
65.20.080.010.4LR			8				50
65.20.100.010.4LR			10				50
65.20.120.010.4LR			12				50
65.20.160.010.4LR			16				50
65.20.200.010.4LR			20				60
65.20.250.010.4LR			25				75
65.20.300.010.4LR			30				75
65.20.350.010.4LR			35				75
65.20.400.010.4LR			40				75
65.20.060.020.4LR		R0.2	6				50
65.20.080.020.4LR			8				50
65.20.100.020.4LR			10				50
65.20.120.020.4LR			12				50
65.20.160.020.4LR			16				50
65.20.200.020.4LR			20				60
65.20.250.020.4LR			25				75
65.20.300.020.4LR			30				75
65.20.350.020.4LR			35				75
65.20.400.020.4LR			40				75
65.20.060.030.4LR		R0.3	6				50
65.20.080.030.4LR			8				50
65.20.100.030.4LR			10				50
65.20.120.030.4LR			12				50
65.20.160.030.4LR			16				50
65.20.200.030.4LR			20				60
65.20.250.030.4LR			25				75
65.20.300.030.4LR			30				75
65.20.350.030.4LR			35				75
65.20.400.030.4LR			40				75
65.20.060.050.4LR		R0.5	6				50
65.20.080.050.4LR			8				50
65.20.100.050.4LR			10				50
65.20.120.050.4LR			12				50
65.20.160.050.4LR			16				50
65.20.200.050.4LR			20				60
65.20.250.050.4LR			25				75
65.20.300.050.4LR			30				75
65.20.350.050.4LR			35				75
65.20.400.050.4LR			40				75
65.25.080.010.4LR	2.5	R0.1	8	2	2.39	4	50
65.25.100.010.4LR			10				50
65.25.150.010.4LR			15				50
65.25.200.010.4LR			20				60
65.25.250.010.4LR			25				75
65.25.300.010.4LR			30				75
65.25.350.010.4LR			35				75
65.25.400.010.4LR			40				75
65.25.450.010.4LR			45				100
65.25.500.010.4LR			50				100
65.25.080.020.4LR		R0.2	8				50
65.25.100.020.4LR			10				50
65.25.150.020.4LR			15				50
65.25.200.020.4LR			20				60
65.25.250.020.4LR			25				75
65.25.300.020.4LR			30				75
65.25.350.020.4LR			35				75
65.25.400.020.4LR			40				75
65.25.450.020.4LR			45				100
65.25.500.020.4LR			50				100
65.25.080.030.4LR		R0.3	8				50
65.25.100.030.4LR			10				50
65.25.150.030.4LR			15				50
65.25.200.030.4LR			20				60
65.25.250.030.4LR			25				75
65.25.300.030.4LR			30				75
65.25.350.030.4LR			35				75
65.25.400.030.4LR			40				75
65.25.450.030.4LR			45				100
65.25.500.030.4LR			50				100
65.25.080.050.4LR		R0.5	8				50
65.25.100.050.4LR			10				50
65.25.150.050.4LR			15				50
65.25.200.050.4LR			20				60
65.25.250.050.4LR			25				75
65.25.300.050.4LR			30				75
65.25.350.050.4LR			35				75
65.25.400.050.4LR			40				75
65.25.450.050.4LR			45				100
65.25.500.050.4LR			50				100
65.30.100.010.4LR	3	R0.1	10	2.4	2.85	6	50
65.30.150.010.4LR			15				60
65.30.200.010.4LR			20				60
65.30.250.010.4LR			25				75
65.30.300.010.4LR			30				75
65.30.350.010.4LR			35				75
65.30.400.010.4LR			40				75
65.30.450.010.4LR			45				100
65.30.500.010.4LR			50				100
65.30.550.010.4LR			55				100
65.30.600.010.4LR			60				100
65.30.100.020.4LR		R0.2	10				50
65.30.150.020.4LR			15				60
65.30.200.020.4LR			20				60
65.30.250.020.4LR			25				75
65.30.300.020.4LR			30				75
65.30.350.020.4LR			35				75
65.30.400.020.4LR			40				75
65.30.450.020.4LR			45				100
65.30.500.020.4LR			50				100
65.30.550.020.4LR			55				100
65.30.600.020.4LR			60				100
65.30.100.030.4LR		R0.3	10				50
65.30.150.030.4LR			15				60
65.30.200.030.4LR			20				60
65.30.250.030.4LR			25				75
65.30.300.030.4LR			30				75
65.30.350.030.4LR			35				75
65.30.400.030.4LR			40				75
65.30.450.030.4LR			45				100
65.30.500.030.4LR			50				100
65.30.550.030.4LR			55				100
65.30.600.030.4LR			60				100
65.30.100.050.4LR		R0.5	10				50
65.30.150.050.4LR			15				60
65.30.200.050.4LR			20				60
65.30.250.050.4LR			25				75
65.30.300.050.4LR			30				75
65.30.350.050.4LR			35				75
65.30.400.050.4LR			40				75
65.30.450.050.4LR			45				100
65.30.500.050.4LR			50				100
65.30.550.050.4LR			55				100
65.30.600.050.4LR			60				100
65.30.100.100.4LR		R1	10				50
65.30.150.100.4LR			15				60
65.30.200.100.4LR			20				60
65.30.250.100.4LR			25				75
65.30.300.100.4LR			30				75
65.30.350.100.4LR			35				75
65.30.400.100.4LR			40				75
65.30.450.100.4LR			45				100
65.30.500.100.4LR			50				100
65.30.550.100.4LR			55				100
65.30.600.100.4LR			60				100
65.40.120.010.4LR	4	R0.1	12	3.2	3.8	6	60
65.40.160.010.4LR			16				60
65.40.200.010.4LR			20				60
65.40.250.010.4LR			25				75
65.40.300.010.4LR			30				75
65.40.400.010.4LR			40				75
65.40.500.010.4LR			50				100
65.40.600.010.4LR			60				100
65.40.700.010.4LR			70				110
65.40.800.010.4LR			80				120
65.40.120.020.4LR		R0.2	12				60
65.40.160.020.4LR			16				60
65.40.200.020.4LR			20				60
65.40.250.020.4LR			25				75
65.40.300.020.4LR			30				75
65.40.400.020.4LR			40				75
65.40.500.020.4LR			50				100
65.40.600.020.4LR			60				100
65.40.700.020.4LR			70				110
65.40.800.020.4LR			80				120
65.40.120.030.4LR		R0.3	12				60
65.40.160.030.4LR			16				60
65.40.200.030.4LR			20				60
65.40.250.030.4LR			25				75
65.40.300.030.4LR			30				75
65.40.400.030.4LR			40				75
65.40.500.030.4LR			50				100
65.40.600.030.4LR			60				100
65.40.700.030.4LR			70				110
65.40.800.030.4LR			80				120
65.40.120.050.4LR		R0.5	12				60
65.40.160.050.4LR			16				60
65.40.200.050.4LR			20				60
65.40.250.050.4LR			25				75
65.40.300.050.4LR			30				75
65.40.400.050.4LR			40				75
65.40.500.050.4LR			50				100
65.40.600.050.4LR			60				100
65.40.700.050.4LR			70				110
65.40.800.050.4LR			80				120
65.40.120.100.4LR		R1	12				60
65.40.160.100.4LR			16				60
65.40.200.100.4LR			20				60
65.40.250.100.4LR			25				75
65.40.300.100.4LR			30				75
65.40.400.100.4LR			40				75
65.40.500.100.4LR			50				100
65.40.600.100.4LR			60				100
65.40.700.100.4LR			70				110
65.40.800.100.4LR			80				120
65.50.160.010.4LR	5	R0.1	16	4	4.75	6	60
65.50.200.010.4LR			20				60
65.50.250.010.4LR			25				75
65.50.300.010.4LR			30				75
65.50.400.010.4LR			40				75
65.50.500.010.4LR			50				100
65.50.600.010.4LR			60				100
65.50.800.010.4LR			80				120
65.50.160.020.4LR		R0.2	16				60
65.50.200.020.4LR			20				60
65.50.250.020.4LR			25				75
65.50.300.020.4LR			30				75
65.50.400.020.4LR			40				75
65.50.500.020.4LR			50				100
65.50.600.020.4LR			60				100
65.50.800.020.4LR			80				120
65.50.160.030.4LR		R0.3	16				60
65.50.200.030.4LR			20				60
65.50.250.030.4LR			25				75
65.50.300.030.4LR			30				75
65.50.400.030.4LR			40				75
65.50.500.030.4LR			50				100
65.50.600.030.4LR			60				100
65.50.800.030.4LR			80				120
65.50.160.050.4LR		R0.5	16				60
65.50.200.050.4LR			20				60
65.50.250.050.4LR			25				75
65.50.300.050.4LR			30				75
65.50.400.050.4LR			40				75
65.50.500.050.4LR			50				100
65.50.600.050.4LR			60				100
65.50.800.050.4LR			80				120
65.50.160.100.4LR		R1	16				60
65.50.200.100.4LR			20				60
65.50.250.100.4LR			25				75
65.50.300.100.4LR			30				75
65.50.400.100.4LR			40				75
65.50.500.100.4LR			50				100
65.50.600.100.4LR			60				100
65.50.800.100.4LR			80				120
