65.0300.0900.4F

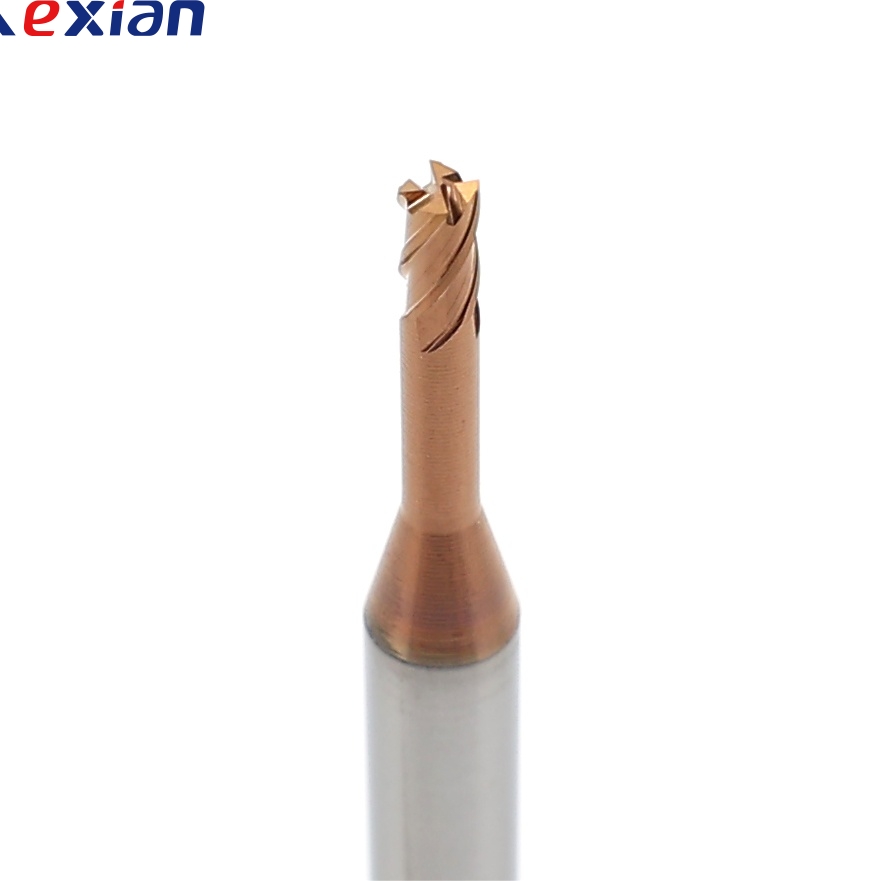

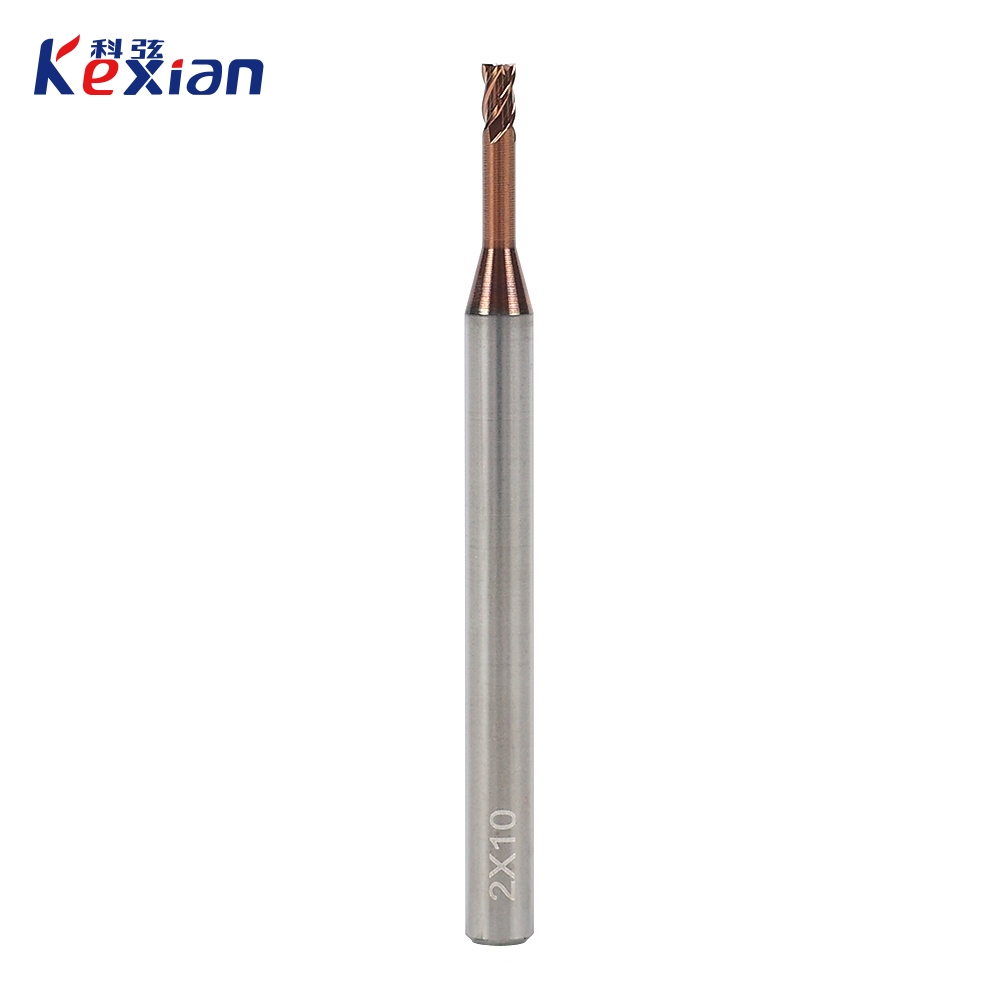

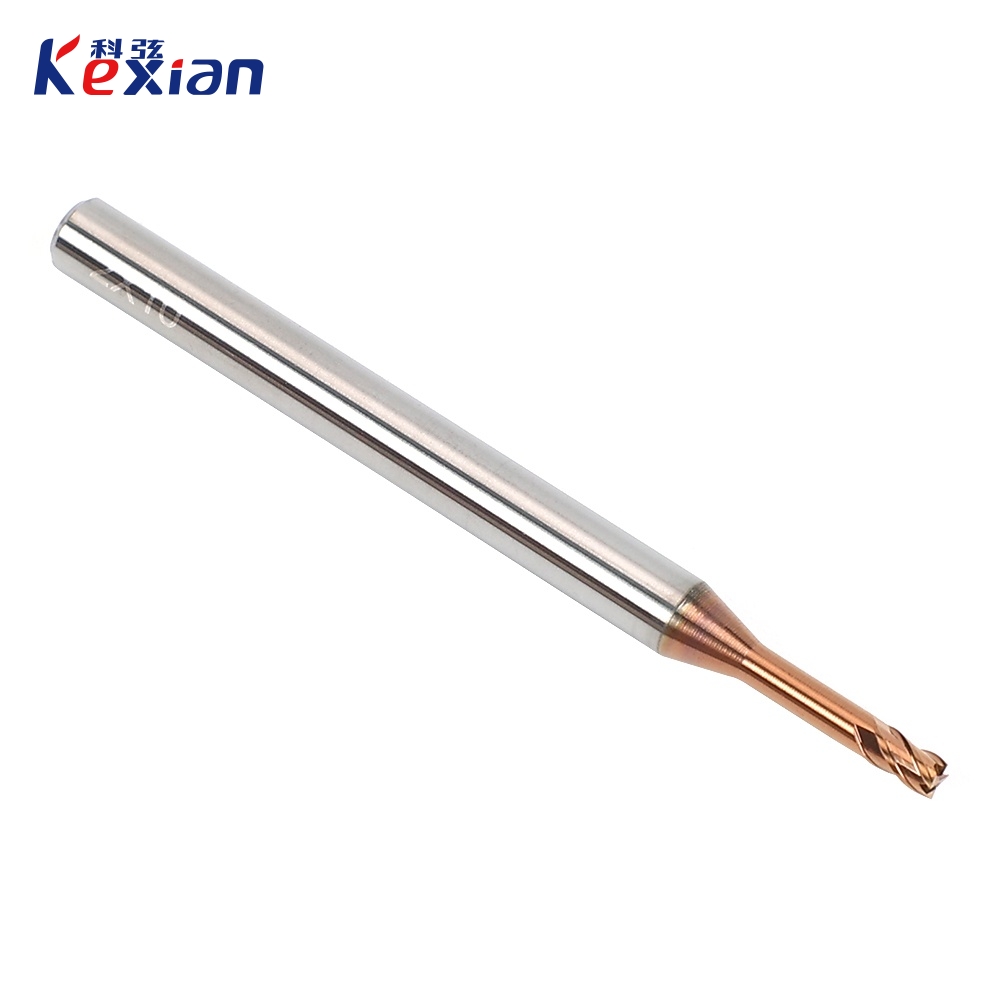

4刃深沟平刀

公差	d=h5
D≤3	0，-0.015
3<D<20	0，-0.02

刀具尺寸

涂层种类	开槽	侧铣	面铣	刃数	螺旋角	适合材料硬度
Tisi				4	30°	HRC≤65

切割材料
非常合适
合适

碳素钢

合金钢

调制钢

铸铁

淬硬钢

不锈钢

钛合金

铝合金

铜

树脂

石墨

高温合金

≤52hrc

>52hrc

订货号	刃径 (mm)	避空长 (mm)	刃长 (mm)	避空径 (mm)	柄径 (mm)	全长 (mm)
65.10.040.4F	1	4	1.5	0.95	4	50
65.10.060.4F		6				50
65.10.080.4F		8				50
65.10.100.4F		10				50
65.10.120.4F		12				50
65.10.150.4F		15				50
65.15.060.4F	1.5	6	2.25	1.45	4	50
65.15.080.4F		8				50
65.15.100.4F		10				50
65.15.120.4F		12				50
65.15.150.4F		15				50
65.15.200.4F		20				60
65.15.250.4F		25				60
65.15.300.4F		30				75
65.20.080.4F	2	8	3	1.94	4	50
65.20.100.4F		10				50
65.20.120.4F		12				50
65.20.160.4F		16				50
65.20.200.4F		20				60
65.20.250.4F		25				60
65.20.300.4F		30				75
65.20.350.4F		35				75
65.20.400.4F		40				75
65.25.080.4F	2.5	8	3.75	2.4	4	50
65.25.100.4F		10				50
65.25.150.4F		15				50
65.25.200.4F		20				60
65.25.250.4F		25				60
65.25.300.4F		30				75
65.25.350.4F		35				75
65.25.400.4F		40				75
65.25.450.4F		45				80
65.25.500.4F		50				80
65.30.100.4F	3	10	4.5	3.85	6	50
65.30.150.4F		15				60
65.30.200.4F		20				60
65.30.250.4F		25				75
65.30.300.4F		30				75
65.30.350.4F		35				75
65.30.400.4F		40				75
65.30.450.4F		45				100
65.30.500.4F		50				100
65.30.550.4F		55				100
65.30.600.4F		60				100
65.40.160.4F	4	16	6	3.8	6	60
65.40.200.4F		20				60
65.40.250.4F		25				75
65.40.300.4F		30				75
65.40.400.4F		40				75
65.40.500.4F		50				100
65.40.600.4F		60				100
65.40.700.4F		70				110
65.40.800.4F		80				120
65.50.160.4F	5	16	7.5	4.8	6	60
65.50.200.4F		20				60
65.50.250.4F		25				75
65.50.300.4F		30				75
65.50.400.4F		40				75
65.50.500.4F		50				100
65.50.600.4F		60				100
65.50.800.4F		80				120
